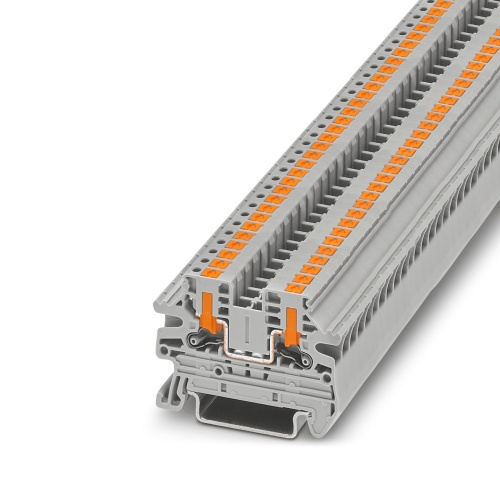

Phoenix Contact 1078960 Feed-through terminal block PTV 2,5
Normally In Stock
Code: 41616
PTV 2,5 Phoenix Contact 1078960 Feed Through Terminal Block - PTV 2,5 Push-In Connection 1 Level 5.2 mm with 2 Connections. Not Grounded, Not Fused Gray. 800 V, 28 A max rating.
Condition: New
Usually Ships Same day or Next Day$1.86
Sale Price
$1.55
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 1078960 A feed-through terminal block has a nominal voltage of 800V and a maximum current capacity of 24A, accommodating two connections and one position, with push-in connection method. It features rated cross-sections ranging from 0.14mm2 to 4mm2 and is mounted using the NS 35/7.5 or NS 35/15 type, and has a gray color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
800 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
5.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Component Color
Gray
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
12
Terminal Block Min Wire Size
26
Terminal Block Connection Method
Push-In Connection
Terminal Block Amperage
24 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Feed-Through Terminal Block
Features
Clear wiring, thanks to lateral conductor entry
The compact design enables wiring in a confined space
The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system
In addition to the testing option in the double function shaft, all terminal blocks provide an additional test pick-off
Downloads
Phoenix 1078960 CAD data International.dxfPhoenix 1078960 CAD data International.pdfPhoenix 1078960 CAD data International.stpPhoenix 1078960 Manufacturers declaration International-2.pdfPhoenix 1078960 Manufacturers declaration International.pdfPhoenix 1078960 Safety note English.pdfPhoenix 1078960 Tender Text English.zip
