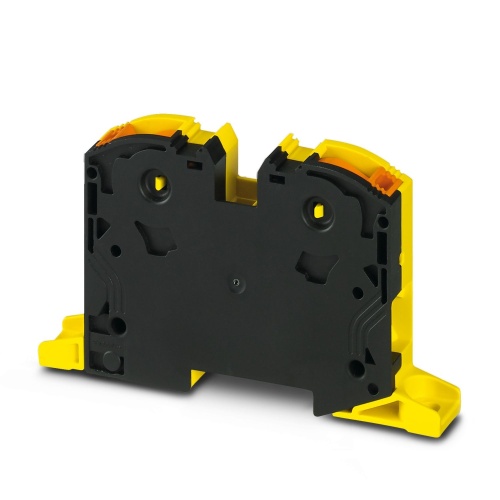

Phoenix Contact 3212082 High-current terminal block PTPOWER 35-FE-F
Normally In Stock
Code: 41539
PTPOWER 35-FE-F Phoenix Contact 3212082 High-current Terminal Block - PTPOWER 35-FE-F Power-Turn Connection 1 Level 16 mm with 2 Connections. Not Grounded, Not Fused Black-Yellow. 1000 V, 125 A max rating.
Condition: New
Usually Ships Same day or Next Day$10.25
Sale Price
$8.54
MUST BUY IN PACKS OF 10
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3212082 A high-current terminal block features a nominal voltage of 1000 V and a nominal current rating of 125 A, accommodating two connections with one position, utilizing the PowerTurn connection method and boasting rated cross sections ranging from 2.5 mm2 to 35 mm2, secured via direct screw mounting in a black/yellow color scheme.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
1000 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
16 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Component Color
Black/Yellow
Terminal Block Amperage
125 Amp
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
2
Terminal Block Min Wire Size
12
Terminal Block Connection Method
Power-Turn Connection
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
High Current Terminal Block
Sub Component
High-Current Terminal Block
Features
Quick and easy connection is now also possible for large conductors with the high-current terminal block
The compact design and front connection enable wiring in a confined space
The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors
In addition to the testing option in the double function shaft, all terminal blocks provide an additional test pick-off
Downloads
Phoenix 3212082 Application Note International.jpgPhoenix 3212082 CAD data International.dxfPhoenix 3212082 CAD data International.pdfPhoenix 3212082 CAD data International.stpPhoenix 3212082 Manufacturers declaration International-2.pdfPhoenix 3212082 Manufacturers declaration International.pdfPhoenix 3212082 Package Slip International.pdfPhoenix 3212082 Safety note English.pdfPhoenix 3212082 Tender Text English.zip
