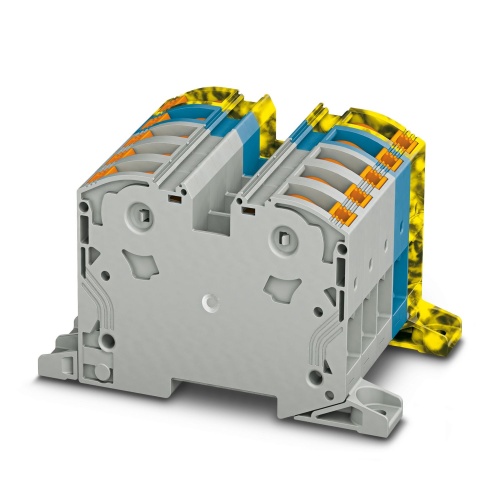

Phoenix Contact 3212076 High-current terminal block PTPOWER 35-3L/N/FE-F
Normally In Stock
Code: 41535
PTPOWER 35-3L/N/FE-F Phoenix Contact 3212076 High-current Terminal Block - PTPOWER 35-3L/N/FE-F Power-Turn Connection 1 Level 80 mm with 2 Connections. Not Grounded, Not Fused Gray-Blue-Black-Yellow. 1000 V, 125 A max rating.
Condition: New
Usually Ships Same day or Next Day$59.70
Sale Price
$49.75
MUST BUY IN PACKS OF 2
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3212076 The terminal block features a high-current design with specifications including a nominal voltage of 1000 V and a maximum current capacity of 125 A. It has ten connections and five positions for mounting, utilizing the PowerTurn connection method. The rated cross-sectional area is 35 mm2, spanning from 2.5 mm2 to 35 mm2. The terminal block can be attached using a direct screw connection and comes in various color combinations including gray/blue/black-yellow.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
1000 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
80 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
10
Terminal Block Amperage
125 Amp
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
2
Terminal Block Min Wire Size
12
Terminal Block Connection Method
Power-Turn Connection
Terminal Block Component Color
Gray/Blue/Black/Yellow
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
High Current Terminal Block
Sub Component
High-Current Terminal Block
Features
Quick and easy connection is now also possible for large conductors with the high-current terminal block
In addition to the testing option in the double function shaft, all terminal blocks provide an additional test pick-off
The compact design and front connection enable wiring in a confined space
The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors
Downloads
Phoenix 3212076 Application Note International.jpgPhoenix 3212076 CAD data International.dxfPhoenix 3212076 CAD data International.pdfPhoenix 3212076 CAD data International.stpPhoenix 3212076 Manufacturers declaration International-2.pdfPhoenix 3212076 Manufacturers declaration International.pdfPhoenix 3212076 Package Slip International.pdfPhoenix 3212076 Safety note English.pdfPhoenix 3212076 Tender Text English.zip
