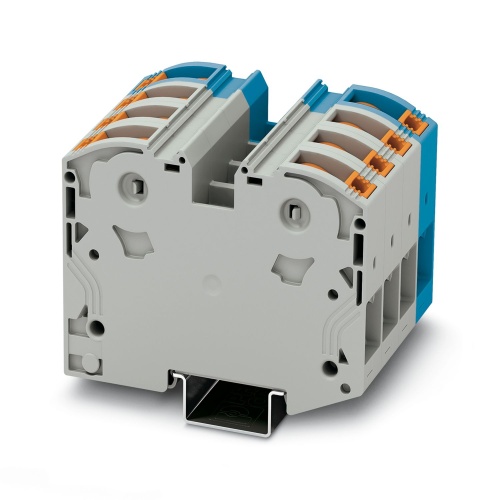

Phoenix Contact 3212069 High-current terminal block PTPOWER 35-3L/N
Normally In Stock
Code: 41529
PTPOWER 35-3L/N Phoenix Contact 3212069 High-current Terminal Block - PTPOWER 35-3L/N Power-Turn Connection 1 Level 64 mm with 2 Connections. Not Grounded, Not Fused Gray-Blue. 1000 V, 125 A max rating.
Condition: New
Usually Ships Same day or Next Day$48.41
Sale Price
$40.34
MUST BUY IN PACKS OF 2
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3212069 A high-current terminal block with a nominal voltage of 1000 V and an operating current of 125 A is currently blocked, featuring eight connections and four positions that can be secured using the PowerTurn connection method. The rated cross-sectional area is 35 mm2, with a minimum of 2.5 mm2, and it is mounted using the NS 35/15 type, with a distinctive gray/blue color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
1000 Volt
Terminal Block Fused
Not Fused
Terminal Block Number of Levels
1
Terminal Block Width
64 mm
Terminal Block Number of Connections
8
Terminal Block Amperage
125 Amp
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
2
Terminal Block Min Wire Size
12
Terminal Block Connection Method
Power-Turn Connection
Terminal Block Component Color
Gray/Blue
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
High Current Terminal Block
Sub Component
High-Current Terminal Block
Features
Quick and easy connection is now also possible for large conductors with the high-current terminal block
The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors
The compact design and front connection enable wiring in a confined space
In addition to the testing option in the double function shaft, all terminal blocks provide an additional test pick-off
Downloads
Phoenix 3212069 Application Note International.jpgPhoenix 3212069 CAD data International.dxfPhoenix 3212069 CAD data International.pdfPhoenix 3212069 CAD data International.stpPhoenix 3212069 Manufacturers declaration International-2.pdfPhoenix 3212069 Manufacturers declaration International.pdfPhoenix 3212069 Package Slip International.pdfPhoenix 3212069 Safety note English.pdfPhoenix 3212069 Tender Text English.zip
