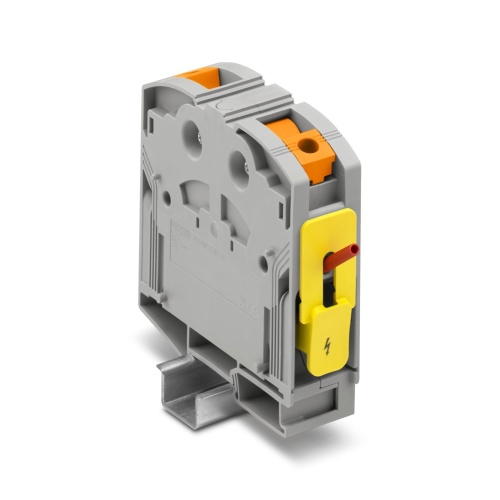

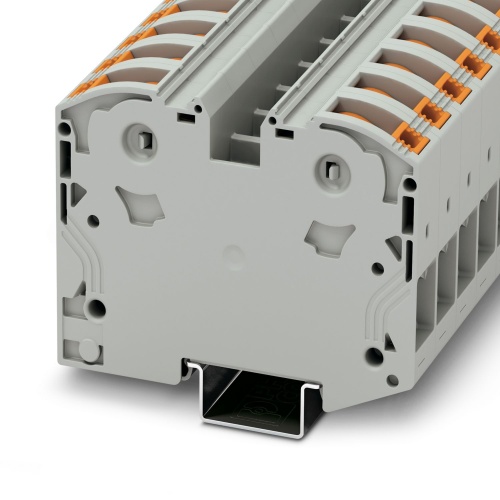

Phoenix Contact 3212064 High-current terminal block PTPOWER 35
Normally In Stock
Code: 41526
PTPOWER 35 Phoenix Contact 3212064 High-current Terminal Block - PTPOWER 35 Power-Turn Connection 1 Level 16 mm with 2 Connections. Not Grounded, Not Fused Gray. 1000 V, 125 A max rating.
Condition: New
Usually Ships Same day or Next Day$10.25
Sale Price
$8.54
MUST BUY IN PACKS OF 10
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3212064 A high-current terminal block has a nominal voltage rating of 1000 V and can handle up to 125 A of current, featuring two connections with a PowerTurn connection method. The rated cross-sectional area is 35 mm², spanning from 2.5 mm² to 35 mm², and this component comes mounted on an NS 35/15 base, with a gray finish.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
1000 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
16 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Component Color
Gray
Terminal Block Amperage
125 Amp
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
2
Terminal Block Min Wire Size
12
Terminal Block Connection Method
Power-Turn Connection
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
High Current Terminal Block
Sub Component
High-Current Terminal Block
Features
Quick and easy connection is now also possible for large conductors with the high-current terminal block
The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors
In addition to the testing option in the double function shaft, all terminal blocks provide an additional test pick-off
The compact design and front connection enable wiring in a confined space
