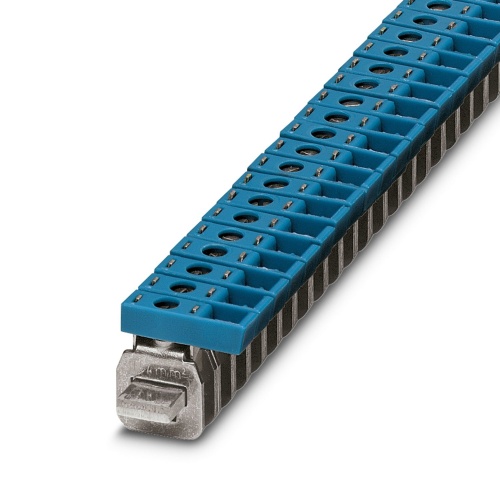

Phoenix Contact 0421016 Connection terminal block AKG 4 BU
Normally In Stock
Code: 41504
Phoenix Contact 0421016 Connection Terminal Block - AKG 4 BU Screw Connection 1 Level 7 mm with . Not Grounded, Not Fused Blue. 300 Volt, 41 Amp max rating.
Condition: New
Usually Ships Same day or Next Day$1.97
Sale Price
$1.64
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 0421016 The terminal block features a nominal voltage of 300 volts and a nominal current capacity of 41 amps, utilizing a screw connection for easy installation. The rated cross-sectional area is 4mm², with a range of 0.5-6mm² to accommodate various wire gauges, and it is mounted on a neutral busbar with a distinct blue color scheme.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Fused
Not Fused
Terminal Block Width
7 mm
Terminal Block Voltage Rating
300 Volt
Terminal Block Component Color
Blue
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
10
Terminal Block Min Wire Size
20
Terminal Block Amperage
41 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Installation Terminal Block
Sub Component
Connection Terminal Block
Features
Maintenance-free connection technologies with the Reakdyn principle for screw terminal blocks and Push-in technology
Fast and reliable neutral conductor disconnection with screw-free disconnect slide
Individual potential distribution with a double function shaft on each level and the standardized bridge accessories
Simple testing options with integrated test points at every terminal point
Clear distribution solutions with standardized marking accessories
