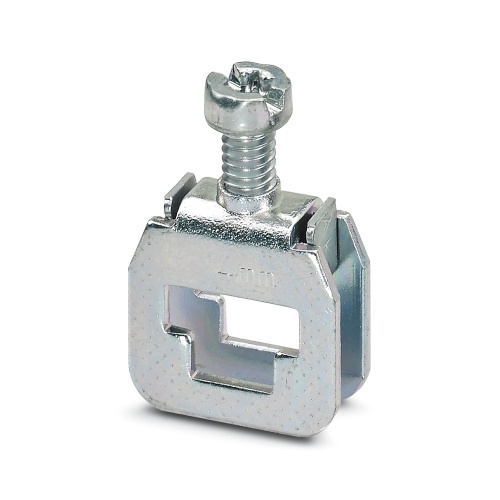

Phoenix Contact 0711409 Connection terminal block AK 4 MIT SIX LOBE SCHRAUBE
Normally In Stock
Code: 41501
Phoenix Contact 0711409 Connection Terminal Block - AK 4 MIT SIX LOBE SCHRAUBE Screw Connection 1 Level 7 mm with . Not Grounded, Not Fused Silver. , 32 Amp max rating.
Condition: New
Usually Ships Same day or Next Day$1.92
Sale Price
$1.60
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 0711409 The connection terminal block has a maximum current rating of 32 amps and uses a screw connection method for secure attachment to the neutral busbar, with a minimum rated cross-sectional area of 4mm² and a range of 0.5mm² to 6mm², typically made from silver-colored material.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Fused
Not Fused
Terminal Block Width
7 mm
Terminal Block Number of Levels
1
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Amperage
32 Amp
Terminal Block Component Color
Silver
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Installation Terminal Block
Sub Component
Connection Terminal Block
Features
Maintenance-free connection technologies with the Reakdyn principle for screw terminal blocks and Push-in technology
Fast and reliable neutral conductor disconnection with screw-free disconnect slide
Individual potential distribution with a double function shaft on each level and the standardized bridge accessories
Simple testing options with integrated test points at every terminal point
Clear distribution solutions with standardized marking accessories
