Phoenix Contact 0716174 Device terminal block G 10/ 2 SO-DK BU
Normally In Stock
Code: 41493
Phoenix Contact 0716174 Device Terminal Block - G 10/ 2 SO-DK BU Screw Connection 1 Level 20 mm with 4 Connections. Not Grounded, Not Fused Blue. 800 Volt, 57 Amp max rating.
Condition: New
Usually Ships Same day or Next Day$7.00
Sale Price
$5.83
MUST BUY IN PACKS OF 10
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

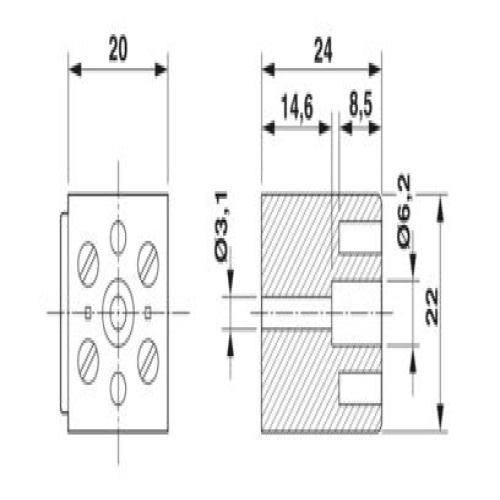

Phoenix Contact 0716174 The device terminal block features a nominal voltage of 800 V and a nominal current capacity of 57 A. It has four connections with two positions available for installation, utilizing a screw connection method. The rated cross-section is 10 mm², but can range from 0.5 mm² to 16 mm². Installation is via direct screw mounting, and the terminal block is identified by its blue coloration.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
800 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
20 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
4
Terminal Block Component Color
Blue
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Amperage
57 Amp
Terminal Block Min Wire Size
20
Terminal Block Max Wire Size
6
Jumper Number of Positions
2
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Feed-Through Terminal Block
Sub Component
Device Terminal Block
Features
Touch-proof shock protection
