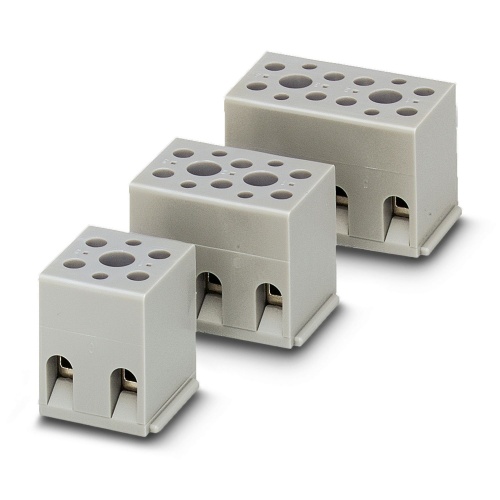

Phoenix Contact 2703172 Device terminal block G 5/ 3-EX
Normally In Stock
Code: 41482
G 5/ 3-EX Phoenix Contact 2703172 Device Terminal Block - G 5/ 3-EX Screw Connection 1 Level 31 mm with 6 Connections. Not Grounded, Not Fused Gray. 275 Volt, 30 Amp max rating.
Condition: New
Usually Ships Same day or Next Day$6.65
Sale Price
$5.54
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2703172 The device terminal block features a nominal voltage of 275 V and a maximum current capacity of 30 A, with six connection points arranged across three positions, utilizing a screw connection method for secure attachment. The rated cross-sectional area ranges from 0.2 mm² to 4 mm² and can be mounted using a direct screw connection, characterized by its gray coloration.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Fused
Not Fused
Terminal Block Width
31 mm
Terminal Block Voltage Rating
275 Volt
Terminal Block Number of Levels
1
Terminal Block Number of Connections
6
Terminal Block Component Color
Gray
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
12
Terminal Block Min Wire Size
24
Terminal Block Amperage
30 Amp
Jumper Number of Positions
3
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Feed-Through Terminal Block
Sub Component
Device Terminal Block
Features
Fast installation with ready-to-connect distribution blocks and device terminal blocks
Significant space savings due to the minimal size
Flexible mounting options with various mounting adapters and special adhesive versions
Color-coded assignment of conductors and terminal points for intuitive and safe installation
Standardized accessories – the blocks can be extended, tested, and marked with the CLIPLINE complete accessories without any loss of pitch
Downloads
Phoenix 2703172 Certification English.pdfPhoenix 2703172 Certification International.pdfPhoenix 2703172 Manufacturers declaration English.pdfPhoenix 2703172 Manufacturers declaration International-2.pdfPhoenix 2703172 Manufacturers declaration International.pdfPhoenix 2703172 Safety note English.pdfPhoenix 2703172 Tender Text English.zipPhoenix 2703172 User instructions for the Ex Area International.pdf
