Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

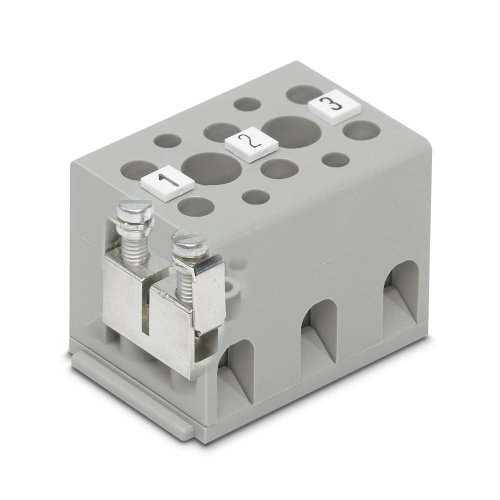

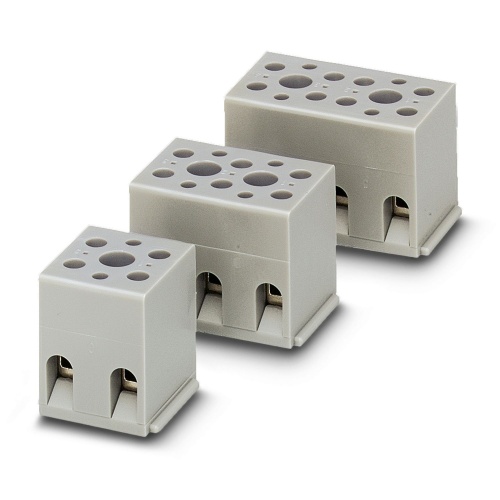

Phoenix Contact 2716020 Device terminal block G 5/ 2
Normally In Stock
Code: 41478
G 5/ 2 Phoenix Contact 2716020 Device Terminal Block - G 5/ 2 Screw Connection 1 Level 20 mm with 4 Connections. Not Grounded, Not Fused Gray. 500 Volt, 32 Amp max rating.
Condition: New
Usually Ships Same day or Next Day$4.46
Sale Price
$3.72
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2716020 The device terminal block features a nominal voltage of 500 V and a maximum current capacity of 32 A, accommodating four connections in two positions utilizing a screw connection method with rated cross-sections ranging from 0.2 to 4 mm², mounted using a direct screw connection and distinguished by its gray color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
500 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
20 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
4
Terminal Block Component Color
Gray
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
12
Terminal Block Min Wire Size
24
Terminal Block Amperage
32 Amp
Jumper Number of Positions
2
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Feed-Through Terminal Block
Sub Component
Device Terminal Block
Features
Touch-proof shock protection
Downloads
Phoenix 2716020 CAD data International.dxfPhoenix 2716020 CAD data International.pdfPhoenix 2716020 CAD data International.stpPhoenix 2716020 Manufacturers declaration English.pdfPhoenix 2716020 Manufacturers declaration International-2.pdfPhoenix 2716020 Manufacturers declaration International.pdfPhoenix 2716020 Safety note English.pdfPhoenix 2716020 Tender Text English.zip
