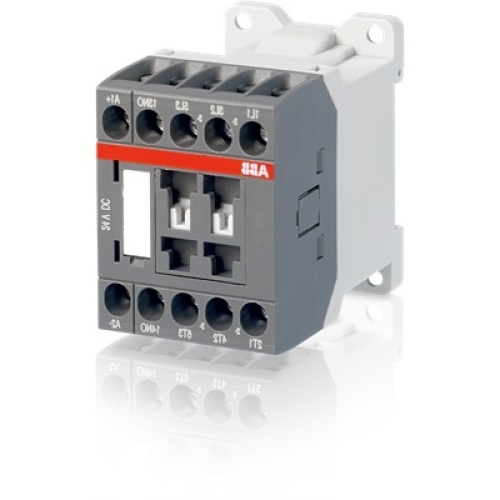

ABB ASL16-30-10-81 - 24 VDC, 15.7 Amp, 3P, 50/60 Hz
Normally In Stock
Code: 414667
ABB ASL16-30-10-81 - DC Contactor - 24 VDC - 50/60 Hz - 15.7 Amp - 3 NO - Three Pole - 0.75-2 HP @ 220-240 VAC 1 Phase, 3-10 HP @ 208-600 VAC 3 Phase - Screw Terminals
Condition: New
Usually ships Same Day or Next Day$320.68
Sale Price
$267.23
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
ABB ASL16-30-10-81 - ASL16 contactors are mainly used for controlling 3-phase motors and generally for controlling power circuits up to 690 V AC or 220 V DC. They are mainly used for controlling 3-phase motors, non-inductive or slightly inductive loads. The ASL... series 1-stack 3-pole contactors are of the block type design. - Main poles and auxiliary contact blocks: 3 main poles, 1 built-in auxiliary contact, front-mounted add-on auxiliary contact blocks (mechanically-linked auxiliary contacts compliant with Annex L of IEC 60947-5-1. N.C. mirror contacts compliant with Annex F of IEC 60947-4-1) - Control circuit: DC operated with solid core magnet circuit. The polarity on the coil terminals (A1+ and A2-) must be respected - Accessories: a wide range of accessories is available. ASL... contactors are fitted with low consumption DC coils and are suitable for a direct control by PLC outputs.
Specifications
Starter Frequency
60 Hz
Starter HP
10 HP @ 480 VAC 3 Phase
Starter HP
3 HP @ 208 VAC 3 Phase
Starter Coil Voltage
24 VDC
Starter HP
2 HP @ 240 VAC 1 Phase
Starter HP
3 HP @ 200 VAC 3 Phase
Starter Frequency
50 Hz
Starter Poles
Three Pole
Starter Auxiliary Contacts
3 NO
Manufacturer
ABB
Component
DC Contactor
Starter HP
5 HP @ 220 VAC 3 Phase
Starter HP
5 HP @ 240 VAC 3 Phase
Starter HP
10 HP @ 440 VAC 3 Phase
Starter HP
10 HP @ 550 VAC 3 Phase
Starter HP
10 HP @ 600 VAC 3 Phase
Starter HP
0.75 HP @ 220 VAC 1 Phase
Starter Amperage
15.7 Amp
Features
ASL09 contactors are mainly used for controlling 3-phase motors and generally for controlling power circuits up to 690 V AC or 220 V DC. T
They are mainly used for controlling 3-phase motors, non-inductive or slightly inductive loads. The ASL..S contactors are the spring terminal version of the ASL...range.
The AS... series 2-stack 3-pole contactors are of the block type design. - Main poles and auxiliary contact blocks: 1st stack with 3 main poles and 1 NO built-in auxiliary contact, with a non-removable front-mounted 2 NO + 2 NC auxiliary contact block (mechanically-linked auxiliary contacts compliant with Annex L of IEC 60947-5-1 including the "Mechanically Linked" symbol on the contactor side. NC mirror contacts compliant with Annex F of IEC 60947-4-1) - Control circuit: DC operated with solid core magnet circuit. The polarity on the coil terminals (A1+ and A2-) must be respected - Accessories: a wide range of accessories is available. ASL... contactors are fitted with low consumption DC coils and are suitable for a direct control by PLC outputs
