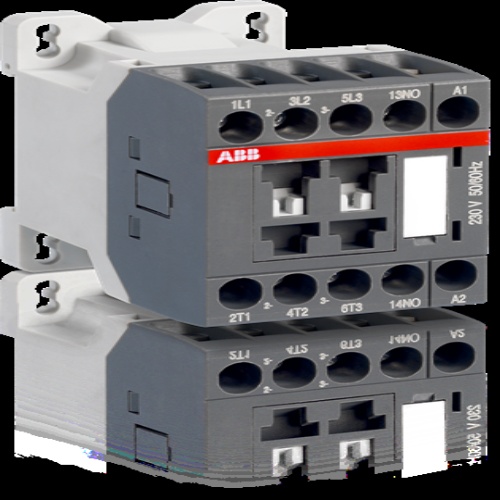

ABB AS12-30-10-26 - 230 VAC, 12 Amp, 3P, 50/60 Hz
Normally In Stock
Code: 414645
ABB AS12-30-10-26 - AC Contactor - 230 VAC - 50/60 Hz - 12 Amp - 3 NO - Three Pole - 0.5-10 HP @ 220-600 VAC 3 Phase - Screw Terminals
Condition: New
Usually ships Same Day or Next Day$178.68
Sale Price
$148.90
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
ABB AS12-30-10-26 - AS12 contactors are mainly used for controlling 3-phase motors and generally for controlling power circuits up to 690 V AC or 220 V DC. They are mainly used for controlling 3-phase motors, non-inductive or slightly inductive loads. The AS... series 1-stack 3-pole contactors are of the block type design. - Main poles and auxiliary contact blocks: 3 main poles, 1 built-in auxiliary contact, front-mounted add-on auxiliary contact blocks (mechanically-linked auxiliary contacts compliant with Annex L of IEC 60947-5-1. N.C. mirror contacts compliant with Annex F of IEC 60947-4-1) - Control circuit: AC operated with laminated magnet circuit - Accessories: a wide range of accessories is available.
Specifications
Starter Frequency
60 Hz
Starter HP
3 HP @ 240 VAC 3 Phase
Starter HP
2 HP @ 208 VAC 3 Phase
Starter Coil Voltage
230 VAC
Starter HP
2 HP @ 200 VAC 3 Phase
Starter Frequency
50 Hz
Starter Poles
Three Pole
Starter Amperage
12 Amp
Starter Auxiliary Contacts
3 NO
Manufacturer
ABB
Component
AC Contactor
Starter HP
10 HP @ 550 VAC 3 Phase
Starter HP
10 HP @ 600 VAC 3 Phase
Starter HP
1.5 HP @ 240 VAC 1 Phase
Starter HP
0.5 HP @ 220 VAC 1 Phase
Starter HP
3 HP @ 220 VAC 3 Phase
Starter HP
7.5 HP @ 440 VAC 3 Phase
Starter HP
7.5 HP @ 480 VAC 3 Phase
Features
AS12 contactors are mainly used for controlling 3-phase motors and generally for controlling power circuits up to 690 V AC or 220 V DC. They are mainly used for controlling 3-phase motors, non-inductive or slightly inductive loads
The AS... series 1-stack 3-pole contactors are of the block type des... Show more
