Code: 414590

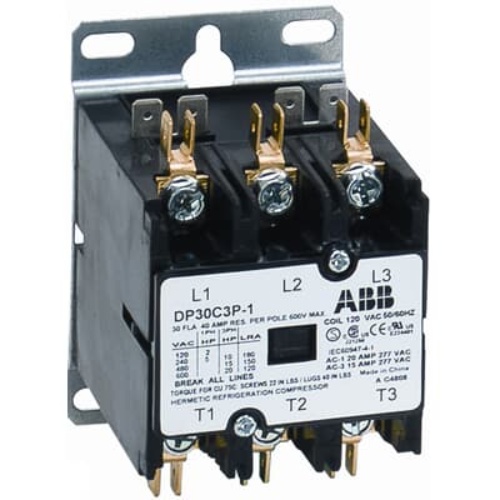

ABB DP30C3P-1 - 120 VAC, 40 Amp, 3P, 50/60 Hz
Normally In Stock
ABB DP30C3P-1 - Definite Purpose Contactor - 120 VAC - 50/60 Hz - 40 Amp - 3 NO - Three Pole - 2-5 HP @ 110-220 VAC 1 Phase, 10-20 HP @ 208-600 VAC 3 Phase
Condition: New
Usually ships Same Day or Next Day$104.96
Sale Price
$87.47
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
ABB DP30C3P-1 DP contactor provide outstanding performance in various HVAC application and meet all relevant standards, including UL, CSA and IEC. Industry standard mounting plate provides easily accessible mounting holes.
Specifications
Starter Coil Voltage
120 VAC
Starter Frequency
60 Hz
Starter HP
2 HP @ 120 VAC 1 Phase
Starter HP
10 HP @ 208 VAC 3 Phase
Starter HP
15 HP @ 480 VAC 3 Phase
Starter HP
20 HP @ 600 VAC 3 Phase
Starter HP
5 HP @ 240 VAC 1 Phase
Starter HP
10 HP @ 240 VAC 3 Phase
Starter Frequency
50 Hz
Starter Poles
Three Pole
Starter Amperage
40 Amp
Starter Auxiliary Contacts
3 NO
Manufacturer
ABB
Starter HP
5 HP @ 220 VAC 1 Phase
Component
Definite Purpose Contactor
Starter HP
2 HP @ 110 VAC 1 Phase
Starter HP
10 HP @ 220 VAC 3 Phase
Starter HP
15 HP @ 440 VAC 3 Phase
Starter HP
20 HP @ 550 VAC 3 Phase
Features
Available as: – 20A, 25A,1, 2 or 3 pole – 30A, 1, 2, 3 or 4 pole – 40A, 2, 3 or 4 pole – 50A, 60A, 3 pole
Industry standard mounting plate provides easily accessible mounting holes
Coil terminals are provided with #6-32 screws and (1) .250 quick connect or dual .250 quickconnect terminals
Exclusive hex, slotted, phillips #10-32 terminal screws for main terminals
Coil is class B (130° C) insulation system with a wide range of voltages and 50/60 Hz ratings
Double E magnet assembly provides optimal performance with reduced power consumption
Snap-in auxiliary switch with 1 SPDT or 2 SPDT contacts available as an option
1 N.O. & 1 N.C. auxiliary contact block with 600 VAC rating available as an option
