Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Downloads
Phoenix 3100063 CAD data International.dxf
Phoenix 3100063 CAD data International.pdf
Phoenix 3100063 CAD data International.stp
Phoenix 3100063 Certification International.pdf
Phoenix 3100063 Manufacturers declaration English.pdf
Phoenix 3100063 Manufacturers declaration International.pdf
Phoenix 3100063 Safety note English.pdf
Phoenix 3100063 Tender Text English.zip
Phoenix 3100063 User instructions for the Ex Area English.pdf

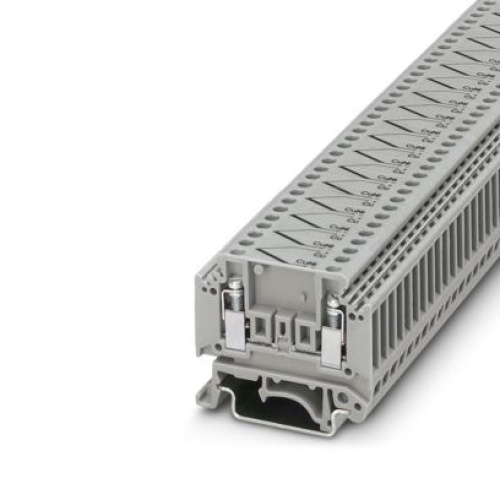

MTKD-NICR/NI EX Phoenix Contact 3100063 MTKD-NICR/NI EX Thermoelectric voltage Terminal Block pair,
MTKD-NICR/NI EX Phoenix Contact 3100063 MTKD-NICR/NI EX Thermoelectric voltage Terminal Block pair, Screw Connection 1 Level 10.4 mm with 4 Connections. Not Grounded, Not Fused Gray. 400 Volt, 1 Amp max rating.
Normally In Stock! Order now!
Condition: New
Usually ships within 7-14 days. Call for ship time. (MUST BUY IN PACKS OF 50)
Price: $29.71
Sale Price:
$18.21
Phoenix Contact 3100063 MTKD-NICR/NI EX Thermoelectric voltage Terminal Block pair,
| Specifications | |
| Terminal Block Voltage Rating | 400 Volt |
| Terminal Block Width | 10.4 mm |
| Terminal Block Number of Levels | 1 |
| Terminal Block Number of Connections | 4 |
| Terminal Block Component Color | Gray |
| Terminal Block Connection Method | Screw Connection |
| Terminal Block Max Wire Size | 12 |
| Terminal Block Min Wire Size | 24 |
| Jumper Number of Positions | 2 |
| Component | Terminal block |
| Manufacturer | Phoenix Contact |
| Terminal Block Amperage | 1 Amp |
| Sub Component | Feed-through terminal block |
| Sub Component | Thermoelectric Voltage Terminal Block Pair |
