Schneider Electric HMISCU8B5 5.7 inch HMI Screen and PLC combo 24 VDC, 24 Watts, Full Color Touch Screen Interface Digital Ins: 8, Digital Outs: 8, Analaog Ins: 4, Analog Outs: 2, UL 508 Ø 22 mm hole mount
Normally In Stock
Code: 41406
Schneider Electric HMISCU8B5 5.7 inch HMI Screen and PLC combo with 24 Watts max power consumption at 24 VDC, a Full Color Touch Screen Interface with a display resolution of 320 x 240 pixels. This HMI Screen PLC Combo has the following I/O: Digital Ins: 8, Digital Outs: 8, Anal
Condition: New
Usually ships Same Day or Next Day$2091.64
Sale Price
$1743.03
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

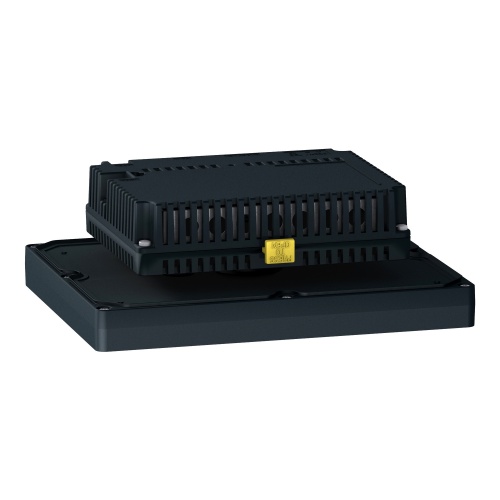

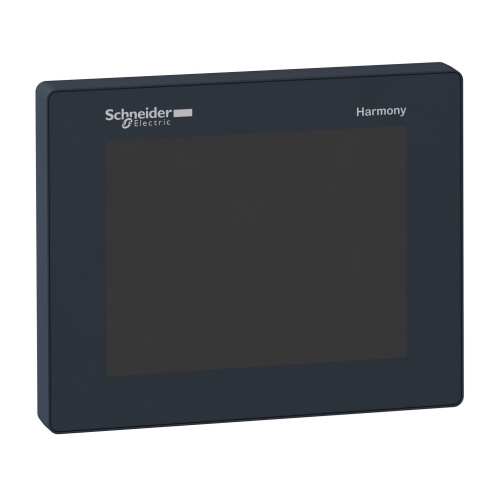

Schneider Electric HMISCU8B5 Magelis 5.7 inch HMI Screen and PLC combo is built to be an ultra-compact HMI and controller solution. This unit uses 24 Watts of max power consumption at 24 VDC, and has a Full Color Touch Screen Interface with a display resolution of 320 x 240 pixels. This HMI Screen PLC Combo has the following I/O: Digital Ins: 8, Digital Outs: 8, Analaog Ins: 4, Analog Outs: 2. This HMI Screen has dimensions of 5.1 in x 6.4 in x 3 in (HxWxD) and is UL 508 certified and is mounted with a Ø 22 mm hole mount. (REQUIRES SoMachine SOFTWARE SOLD SEPARATELY)
Specifications
HMI & PC Supply Voltage DC
24 VDC
HMI & PC Display Color
Full Color
HMI & PC UL Certification
UL 508
HMI & PC NEMA Rating
NEMA 4X
HMI & PC Memory (Mass Storage)
128 Kb
HMI & PC Memory (RAM)
128 MB
HMI & PC Software
Somachine
HMI & PC Max Power Consumption
24 Watts
HMI & PC Digital Inputs
8
HMI & PC Digital Outputs
8
HMI & PC Analog Inputs
4
HMI & PC Analog Outputs
2
HMI & PC Connection Type
USB 2.0 Type Mini B
HMI & PC Screen Display Resolution
320 X 240
HMI & PC Connection Type
RJ45
HMI & PC Connection Type
RS232C
HMI & PC Connection Type
RS485
HMI & PC Connection Type
USB 2.0 Type A
HMI & PC Connection Type
Ethernet TCP/IP
Manufacturer
Schneider Electric
Component
Touchscreen Panel
HMI & PC Screen Display Size
5.7"
HMI & PC Height
5.25"
HMI & PC Depth
3"
HMI & PC Width
6.5"
HMI & PC Interface
Touchscreen Interface
Features
Saves time, space and cost
State-of-the-art display provides clear readability
Rich communication capabilities
