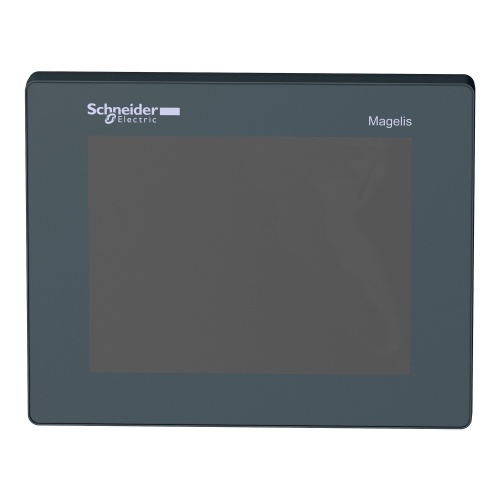

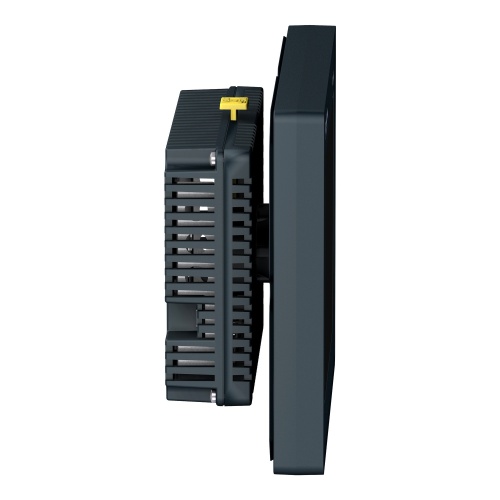

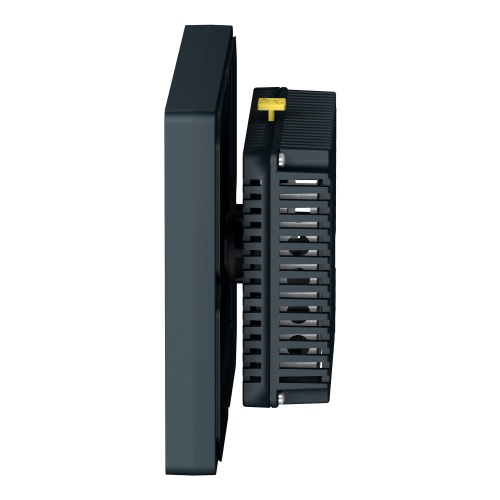

Schneider Electric HMISTU855 5.7 inch HMI Screen 24 VDC 6.8 Watts, Full Color Touch Screen Interface UL 508 Ø 22 mm hole mount
Schneider Electric HMISTU855 5.7 inch HMI Screen with 6.8 Watts max power consumption at 24 VDC, a Full Color Touch Screen Interface with a display resolution of 320 x 240 pixels. This HMI Screen is UL 508 certified and is mounted with a Ø 22 mm hole mount. (REQUIRES Vijeo Design
Normally In Stock! Order now!
Condition: New
Usually ships Same Day or Next Day
Price: $1571.40
Sale Price:
$1501.89

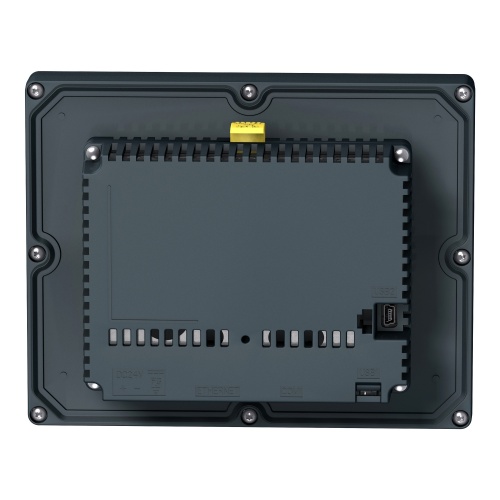

Schneider Electric HMISTU855 5.7 inch HMI Screen is designed to be a compact, cost effective solution for machine builders. This HMI screen has 6.8 Watts of max power consumption at 24 VDC, a Full Color Touch Screen Interface with a display resolution of 320 x 240 pixels. This HMI Screen is UL 508 certified and is mounted with a Ø 22 mm hole mount and includes 3 connection types: 1 USB 2.0 type mini B, 1 USB 2.0 type A and RJ45 RS232C/RS485. (REQUIRES Vijeo Designer configuration software TO CONFIGURE. SOLD SEPARATLY)
| Specifications | |
| HMI & PC Software | Vijeo Designer configuration software |
| HMI & PC Supply Voltage DC | 24 VDC |
| HMI & PC Display Color | Full Color |
| HMI & PC UL Certification | UL 508 |
| HMI & PC NEMA Rating | NEMA 4X |
| HMI & PC Product Compatability | Modicon |
| HMI & PC Connection Type | 1 USB 2.0 type A |
| HMI & PC Connection Type | 1 USB 2.0 type mini B |
| HMI & PC Memory (RAM) | 16 MB |
| HMI & PC Memory (Mass Storage) | 64 kB |
| HMI & PC Connection Type | RJ45 RS232C/RS485 |
| HMI & PC Product Line | STU |
| HMI & PC Max Power Consumption | 6.8 Watts |
| HMI & PC Screen Display Resolution | 320 x 240 |
| Manufacturer | Schneider Electric |
| Component | Touchscreen panel |
| HMI & PC Screen Display Size | 5.7" |
| HMI & PC Height | 5.25" |
| HMI & PC Depth | 2.25" |
| HMI & PC Width | 6.5" |
| HMI & PC Interface | Touchscreen Interface |
Customer Reviews
0.0
All Reviews
Related Products
$630.00

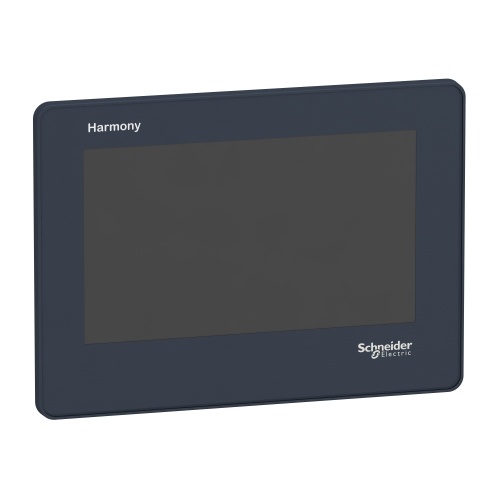

Schneider Electric HMISTO705 4.3 inch HMI Screen is designed to be a compact, cost effective solution for machine builders. This HMI screen has 7.5 Watts of max power consumption at 12 VDC-24 VDC, a Full Color Touch Screen Interface with a display resolution of 480 x 272 pixels. This HMI Screen is UL 61010 certified and is mounted with a 2 Fastener mount to panel and includes 3 connection types: RS232C terminal block, 1 USB 2.0 type A and 1 USB 2.0 type mini B. (REQUIRES Vijeo XD TO CONFIGURE. SOLD SEPARATLY)
$805.81
Schneider Electric HMISTO715 4.3 inch HMI Screen is designed to be a compact, cost effective solution for machine builders. This HMI screen has 7.5 Watts of max power consumption at 12 VDC-24 VDC, a Full Color Touch Screen Interface with a display resolution of 480 x 272 pixels. This HMI Screen is UL 61010 certified and is mounted with a 2 Fastener mount to panel and includes 3 connection types: 1 RJ45 RS232C/RS485, 1 USB 2.0 type mini B and 1 USB 2.0 type A. (REQUIRES Vijeo XD TO CONFIGURE. SOLD SEPARATLY)
$871.11
Schneider Electric HMISTO735 4.3 inch HMI Screen is designed to be a compact, cost effective solution for machine builders. This HMI screen has 8.1 Watts of max power consumption at 12 VDC-24 VDC, a Full Color Touch Screen Interface with a display resolution of 480 x 272 pixels. This HMI Screen is UL 61010 certified and is mounted with a 2 Fastener mount to panel and includes 3 connection types: 1 RJ45 connector Ethernet TCP/IP, 1 USB 2.0 type mini B and 1 USB 2.0 type A. (REQUIRES Vijeo XD TO CONFIGURE. SOLD SEPARATLY)
$1033.61

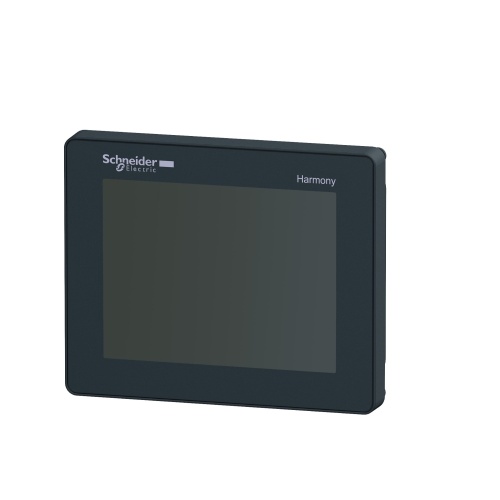

Schneider Electric HMISTU655 3.5 inch HMI Screen is designed to be a compact, cost effective solution for machine builders. This HMI screen has 6.5 Watts of max power consumption at 24 VDC, a Full Color Touch Screen Interface with a display resolution of 320 x 240 pixels. This HMI Screen is UL 508 certified and is mounted with a Ø 22 mm hole mount and includes 3 connection types: 1 USB 2.0 type mini B, 1 USB 2.0 type A and RJ45 RS232C/RS485. (REQUIRES Vijeo Designer configuration software TO CONFIGURE. SOLD SEPARATLY)
$1571.40

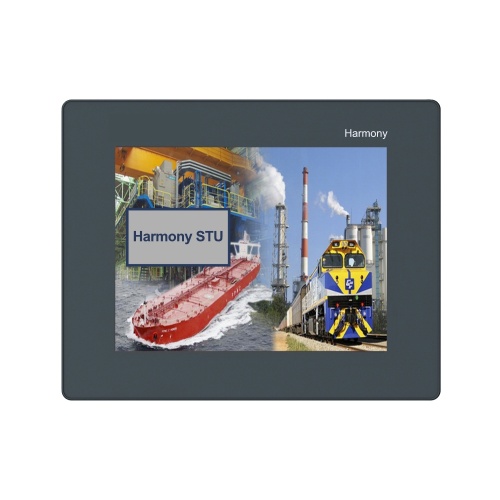

Schneider Electric HMISTU855W 5.7 inch HMI Screen is designed to be a compact, cost effective solution for machine builders. This HMI screen has 6.8 Watts of max power consumption at 24 VDC, a Full Color Touch Screen Interface with a display resolution of 320 x 240 pixels. This HMI Screen is UL 508 certified and is mounted with a Ø 22 mm hole mount and includes 3 connection types: 1 USB 2.0 type mini B, 1 USB 2.0 type A and RJ45 RS232C/RS485. (REQUIRES Vijeo Designer configuration software TO CONFIGURE. SOLD SEPARATLY)
$514.44

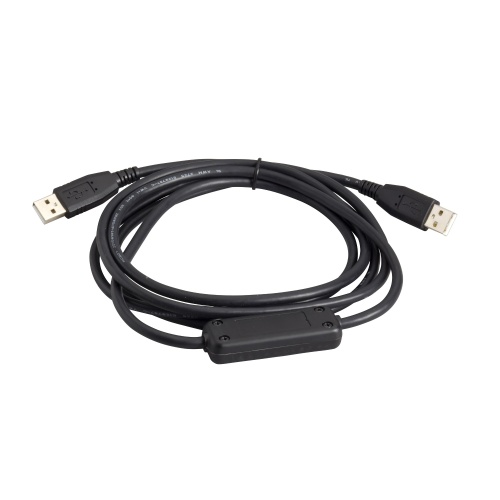

application transfer cable between terminal and PC - 2 m
