Code: 41302

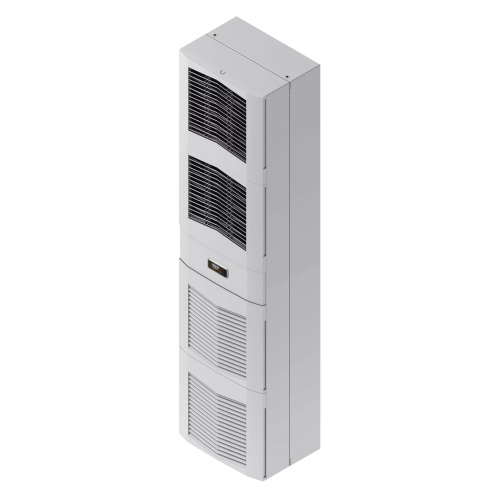

nVent Hoffman S101046G060 Spectracool AC 460 VAC 3400 BTU
nVent Hoffman S101046G060 SpectraCool Slim Fit Indoor Air Conditioner Indoor Model with Remote Access Control, 400 - 460 VAC , 3400 BTU, Type 12 Indoor, Painted Galvanized Steel.
Condition: New
Usually ships Same Day or Next Day*NON-CANCELLABLE, NON-RETURNABLE*
$7426.14
Sale Price
$6188.45
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
nVent Hoffman S101046G060 SpectraCool Slim Fit Indoor Air Conditioner Indoor Model with Remote Access Control, Voltage: 400 - 460 VAC , 3400 BTU, Type 12 Indoor, Painted Galvanized Steel.
Specifications
AC Mounting
Side Mount
AC Maximum Ambient Temp
131 F
AC With Remote Control Access
Includes Remote Control Access
AC Voltage
460 VAC
AC Max BTU Rating
3400 BTU
AC Type
Air Conditioner (Compressor)
AC Composition
Steel
AC Environment
Outdoor-Indoor
AC Minimum Ambient Temp
50 F
AC Slim Fit
Slim Fit
Component
Air Conditioner
Line
Spectracool
AC Depth
11"
AC Height
38"
AC Width
16"
AC Amperage
8 Amp
Manufacturer
Hoffman
Acs Watts
1000 Watts
Features
Operating temperature range from 50 F / 10 C to 131 F / 55 C
R134a refrigerant
Voltage: 230 V (50/60 Hz), 115 V (50/60 Hz) and 400/460 V 3-phase (50/60 Hz)
Easy filter replacement for extremely dusty environments
Aesthetic design plastic cover to optimize air flow
Slim Fit Design with three mounting options, fully recessed, partial recessed and surface mount
Dust resistant coils for filterless operation
Standard cutout dimension for easy exchange
Terminal block power input
Energy efficient rotary compressor
Active condensate management to prevent dripping water
Every unit functionally tested before shipping
Standard Air Conditioners are compatible with an enclosure door switch
Mounting hardware, gaskets and user manual furnished with the unit
Remote Access Control Units support up to 2 temperature sensors and 10 alarms. They support multiple communication protocols: SNMP, Modbus TCP, Ethernet/IP, and Profinet.
Downloads
Hoffman S101046G060 Declaration of Compliance.pdfHoffman S101046G060 EAC Certification.pdfHoffman S101046G060 EU Certification.pdfHoffman S101046G060 Spec Sheet.pdfHoffman S101046G060 SpectraCool Slim Fit Instruction Manual.pdfHoffman S101046G060 SpectraCool Slim Fit Quick Start Manual.pdfHoffman S101046G060 UL Certification.pdf
