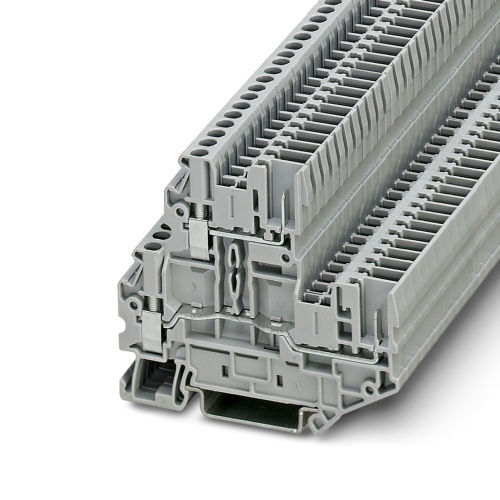

Phoenix Contact 3060351 Double-level terminal block UTTB 2,5/2P
Normally In Stock
Code: 41125
UTTB 2,5/2P Phoenix Contact 3060351 Double-level Terminal Block - UTTB 2,5/2P - 3060351 Screw Connection 2 Level 5.2 mm with 4 Connections. Not Grounded, Not Fused Gray. 500 Volt, 24 Amp max rating.
Condition: New
Usually Ships Same day or Next Day$3.56
Sale Price
$2.97
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3060351 The terminal block features a double-level design with current and voltage determined by the specific plug used. The nominal values are 500 V and 24 A, with connections made via screw or plug-in methods. The rated cross-sectional area ranges from 0.14 mm2 to 4 mm2, while mounting types include NS 35/7,5 and NS 35/15. Additionally, the terminal block is available in a gray color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
500 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
5.2 mm
Terminal Block Number of Connections
4
Terminal Block Number of Levels
2
Terminal Block Component Color
Gray
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
12
Terminal Block Min Wire Size
26
Terminal Block Connection Method
Plug Connection
Terminal Block Amperage
24 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Plug-In Terminal Block
Sub Component
Double-Level Terminal Block
Features
Potential routing on two levels
