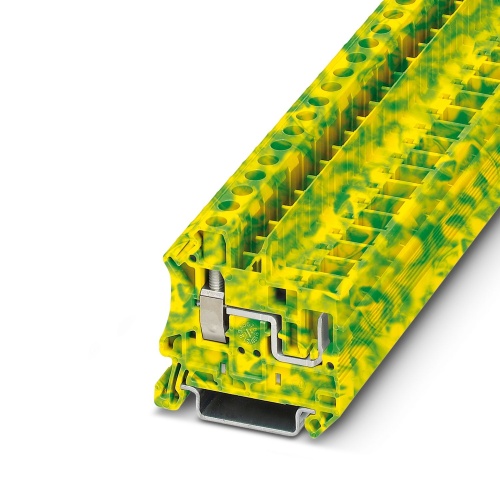

Phoenix Contact 3060555 Protective conductor terminal block UT 6/1P-PE
Normally In Stock
Code: 41121
UT 6/1P-PE Phoenix Contact 3060555 Ground modular Terminal Block - UT 6/1P-PE Screw Connection 1 Level 8.2 mm with 2 Connections. Grounded, Not Fused Green-Yellow. , max rating.
Condition: New
Usually Ships Same day or Next Day$6.40
Sale Price
$5.33
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3060555 The protective conductor terminal block is characterized by its plug-based connection system, where the number of connections ranges from 2 and allows for both screw-in and plug-in connection methods. The cross-sectional area varies between 0.2 mm² to 10 mm² and is mounted using NS 35/7.5 or NS 35/15 standards, with a distinctive green-yellow coloration.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Fused
Not Fused
Terminal Block Width
8.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Connection Method
Screw Connection
Terminal Block Min Wire Size
24
Terminal Block Grounded
Grounded
Terminal Block Max Wire Size
8
Terminal Block Connection Method
Plug Connection
Terminal Block Component Color
Green/Yellow
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Ground Terminal Block
Sub Component
Ground Modular Terminal Block
Features
Universal use – connection of small to very large conductor cross-sections
Space-saving with a compact design, multi-conductor terminal blocks, and multi-level terminal blocks
Easy potential distribution with function shafts on each level
Maximum clarity with large marking surfaces
Reduction in logistics costs with the uniform CLIPLINE complete system accessories
Downloads
Phoenix 3060555 CAD data International.dxfPhoenix 3060555 CAD data International.pdfPhoenix 3060555 CAD data International.stpPhoenix 3060555 Manufacturers declaration English.pdfPhoenix 3060555 Manufacturers declaration International.pdfPhoenix 3060555 Safety note English.pdfPhoenix 3060555 Tender Text English.zip
