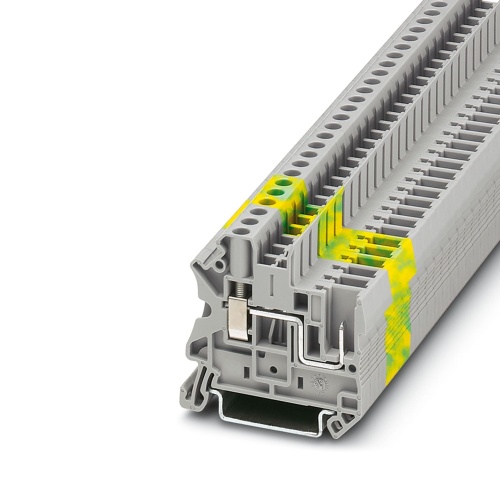

Phoenix Contact 3045583 Feed-through terminal block UT 4/ 1P
Normally In Stock
Code: 41112
UT 4/ 1P Phoenix Contact 3045583 Feed Through Terminal Block - UT 4/ 1P Screw Connection 1 Level 6.2 mm with 2 Connections. Not Grounded, Not Fused Gray. 800 Volt, 32 Amp max rating.
Condition: New
Usually ships within 7-14 days. Call for ship time.$1.25
Sale Price
$1.04
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3045583 The terminal block features a feed-through design with a nominal voltage of 800 V and a maximum current capacity of 32 A, accommodating up to two connections via screw/plug-in connections. The rated cross-sectional area ranges from 0.14 mm² to 6 mm², while the mounting type is either NS 35/7.5 or NS 35/15, and the terminal block has a gray color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
800 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
6.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Component Color
Gray
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
10
Terminal Block Min Wire Size
26
Terminal Block Connection Method
Plug Connection
Terminal Block Amperage
32 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Feed-Through Terminal Block
Sub Component
Plug-In Terminal Block
Features
Terminal blocks that can be connected on both sides available
Compatible with standard UT terminal blocks
Uniform, touch-proof plug-in zone
Downloads
Phoenix 3045583 CAD data International.dxfPhoenix 3045583 CAD data International.pdfPhoenix 3045583 CAD data International.stpPhoenix 3045583 Manufacturers declaration English.pdfPhoenix 3045583 Manufacturers declaration International.pdfPhoenix 3045583 Safety note English.pdfPhoenix 3045583 Tender Text English.zip
