Code: 41090

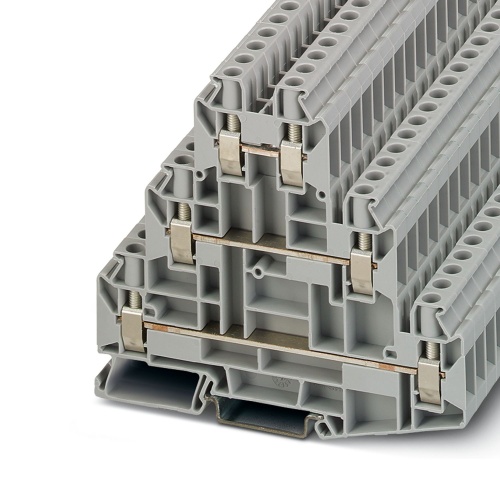

Phoenix Contact 3046703 Multi-level terminal block UT 6-3L
Normally In Stock
UT 6-3L Phoenix Contact 3046703 Multi-level Terminal Block - UT 6-3L Screw Connection 3 Level 8.2 mm with 6 Connections. Not Grounded, Not Fused Gray. 1000 Volt, 36 Amp max rating.
Condition: New
Usually ships within 7-14 days. Call for ship time.$9.24
Sale Price
$7.70
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3046703 A multi-level terminal block features a nominal voltage of 1000 V and a nominal current capacity of 36 A, utilizing a screw connection method for connections, with rated cross-sections ranging from 0.2 mm² to 10 mm² and is mounted using the NS 35/7,5 or NS 35/15 type, displaying a gray color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
1000 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
8.2 mm
Terminal Block Number of Connections
6
Terminal Block Number of Levels
3
Terminal Block Component Color
Gray
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Min Wire Size
24
Terminal Block Max Wire Size
8
Component
Terminal Block
Manufacturer
Phoenix Contact
Terminal Block Amperage
36 Amp
Sub Component
Multi-Level Terminal Block
Model Type
UT
Features
The large wiring space enables the connection of solid and stranded conductors without ferrules, even above the nominal cross section
For a clear overview, each terminal point supports large-surface labeling
A very high wiring density is achieved with the compact three-level terminal blocks
Optimum screwdriver guidance through closed screw shafts
The cable entry funnel enables the use of conductors with ferrules and plastic collars within the nominal cross section
Downloads
Phoenix 3046703 Application Note International.pdfPhoenix 3046703 CAD data International.dxfPhoenix 3046703 CAD data International.pdfPhoenix 3046703 CAD data International.stpPhoenix 3046703 Manufacturers declaration English.pdfPhoenix 3046703 Manufacturers declaration International.pdfPhoenix 3046703 Safety note English.pdfPhoenix 3046703 Tender Text English.zip
