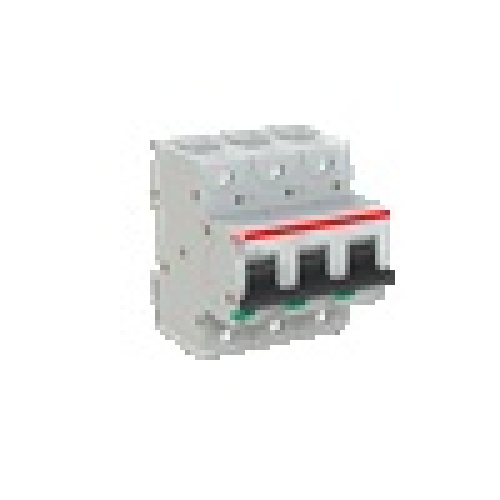

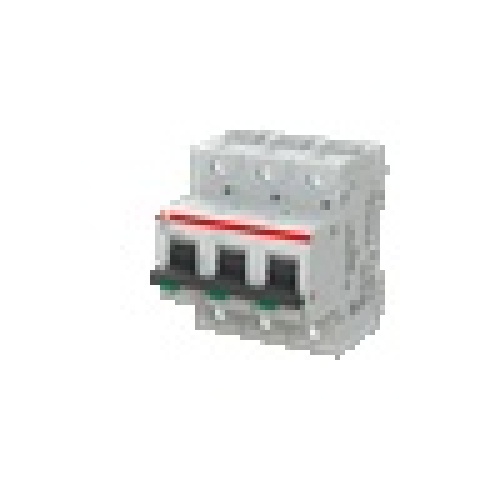

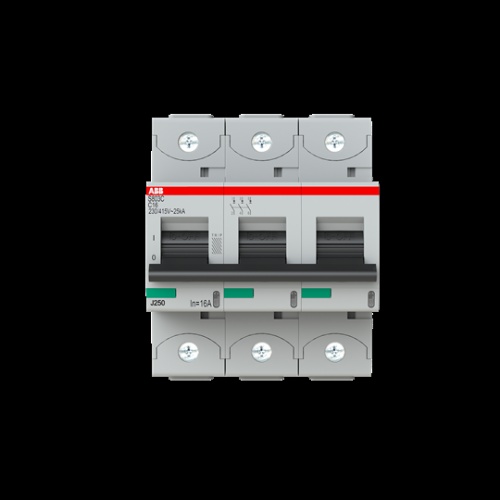

ABB S803C-C16 High Performance Circuit Breaker - 16 Amp, Three Pole, 440 VAC
Normally In Stock
Code: 410889
ABB S803C-C16 - 440 VAC,375 VDC,400 VAC - 10 kA 375 VDC, 10 kA 480Y/277 VAC - Three Pole - 16 Amp
Condition: New
Usually ships Same Day or Next Day*NON-CANCELLABLE, NON-RETURNABLE*
$869.82
Sale Price
$724.85
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
ABB S803C-C16 is a 3-pole High Performance Circuit breaker with C-characteristic, with cage terminal and a rated current of 16 A. It is a current limiting device with a maximum breaking capacity of 25kA at 240/415V. It can be used for voltages up to 254/440V and in DC as well. It has two different tripping mechanisms, the thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. ABB S803C-C16 complies with IEC/EN 60898-1 and IEC/EN 60947-2 and allows the use for residential, commercial and industrial applications. It has numerous of approvals, therefore it can be used worldwide. ABB extensive range of accessory makes the use of S803C-C16 more comfortable. Due to the fast arc extinction of S803C-C16 your application will be secured.
Specifications
Breaker Amperage Rating
16 Amp
Breaker Number of Poles
Three Pole
Breaker Voltage Rating
440 VAC
Breaker Voltage Rating
400 VAC
Manufacturer
ABB
Breaker Voltage Rating
375 VDC
Component
High Performance Circuit Breaker
Interrupt Rating
10 Ka 375 Volt (DC)
Interrupt Rating
10 Ka 480Y/277 Volt
Features
The range of applications of the S800 high performance circuit breakers is extremely varied: from building and marine installations, industry, transport and renewable energies to uninterrupted power supply
The S800 high performance circuit breakers are reliable switches: rated ultimate short-circuit breaking capacity up to 50kA, fixed rated tripping current, current rating up to 125A, the most varied of characteristics and much more
S800 are flexible, yet at the same time meet the highest safety requirements.
