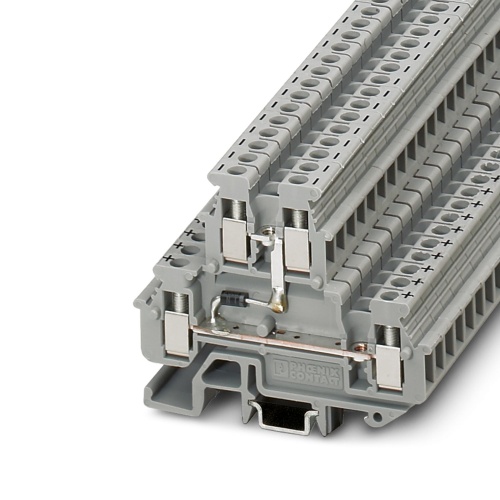

Phoenix Contact 2800570 Mini feed-through terminal block MBKKB 2,5-DIO/U-O
Normally In Stock
Code: 41059
MBKKB 2,5-DIO/U-O Phoenix Contact 2800570 Mini Feed Through Terminal Block - MBKKB 2,5-DIO/U-O Screw Connection 2 Level 5.2 mm with 4 Connections. Not Grounded, Not Fused Gray. 500 Volt, 24 Amp max rating.
Condition: New
Usually ships within 7-14 days. Call for ship time.$16.28
Sale Price
$13.57
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.

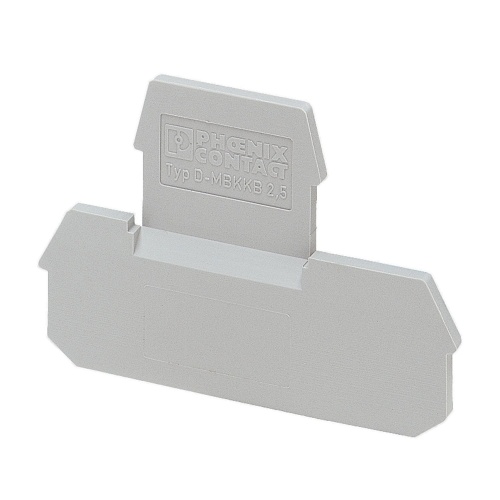

Related Products
Description

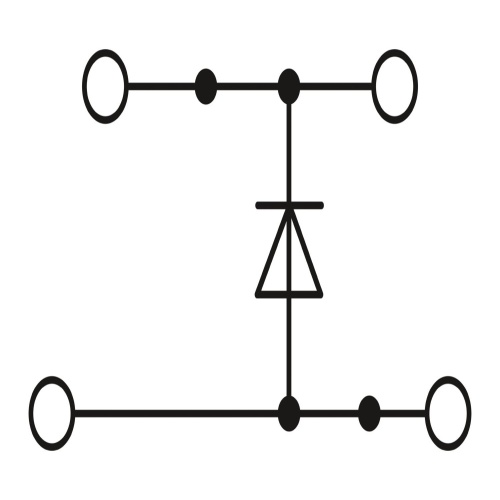

Phoenix Contact 2800570 A mini feed-through terminal block is characterized by its max current being set by a diode, specifically the 1N 4007 model with a reverse voltage of 1300 V and a maximum continuous current of 0.5 A. The integrated diode has a nominal voltage of 500 V and nominal current of 0.5 A. This terminal block features screw connections for levels 1st and 2nd, with rated cross sections ranging from 0.2 mm2 to 4 mm2, and is mountable using NS 15, NS 35/7.5, or NS 35/15.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
500 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
5.2 mm
Terminal Block Number of Connections
4
Terminal Block Number of Levels
2
Terminal Block Component Color
Gray
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
12
Terminal Block Min Wire Size
24
Terminal Block Amperage
24 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Miniature Terminal Block
Sub Component
Mini Feed-Through Terminal Block
Features
Thanks to the different versions of double-level diode terminal blocks, a variety of switching tasks can be performed
Space saving thanks to compact design and mounting option on a 15 mm DIN rail
Clear arrangement thanks to marking of all terminal points

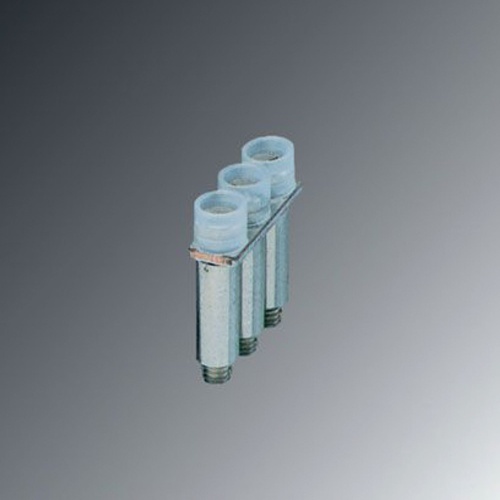

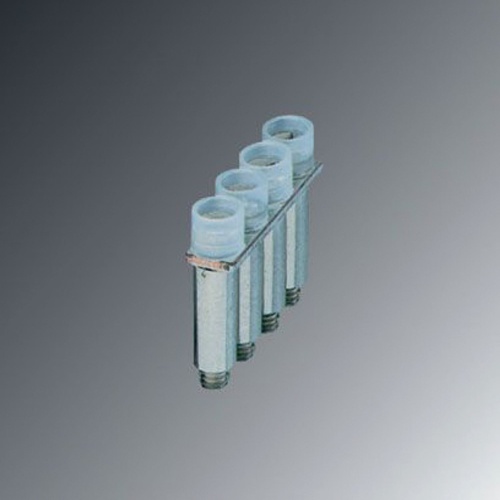

Easy potential distribution thanks to standardized plug-in bridges
Downloads
Phoenix 2800570 CAD data International.dxfPhoenix 2800570 CAD data International.pdfPhoenix 2800570 CAD data International.stpPhoenix 2800570 Manufacturers declaration English.pdfPhoenix 2800570 Manufacturers declaration International.pdfPhoenix 2800570 Safety note English.pdfPhoenix 2800570 Tender Text English.zip
