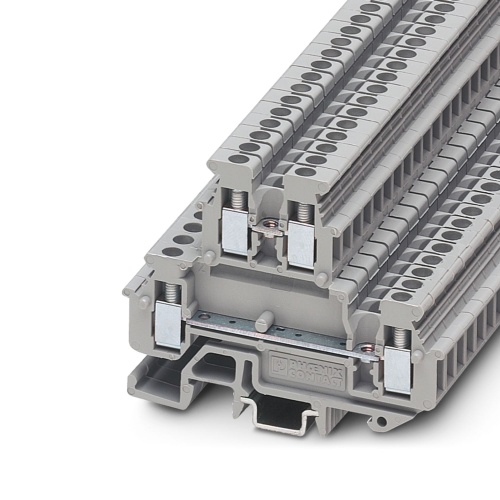

Phoenix Contact 1414064 Mini feed-through terminal block MBKKB 2,5
Normally In Stock
Code: 41053
MBKKB 2,5 Phoenix Contact 1414064 Mini Feed Through Terminal Block - MBKKB 2,5 Screw Connection 2 Level 5.2 mm with 4 Connections. Not Grounded, Not Fused Gray. 500 Volt, 24 Amp max rating.
Condition: New
Usually Ships Same day or Next Day$7.97
Sale Price
$6.64
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 1414064 A mini feed-through terminal block with a nominal voltage of 500V and a maximum current rating of 24A features a screw connection for the first and second levels of connections. The terminal block has a rated cross-sectional area of 2.5mm², with a range of 0.2mm² to 4mm², and can be mounted using various types such as NS 15, NS 35/7.5, or NS 35/15. Additionally, the terminal block is available in a gray color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
500 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
5.2 mm
Terminal Block Number of Connections
4
Terminal Block Number of Levels
2
Terminal Block Component Color
Gray
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
12
Terminal Block Min Wire Size
24
Terminal Block Amperage
24 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Miniature Terminal Block
Sub Component
Mini Feed-Through Terminal Block
Features

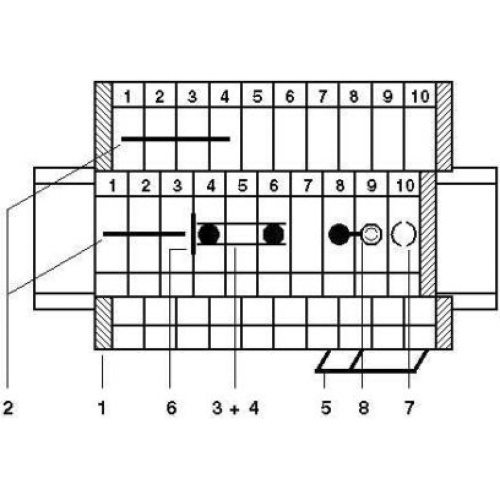

Fixed bridges and test sockets can be used on both levels
Space saving thanks to compact design and mounting option on a 15 mm DIN rail
Clear arrangement thanks to marking of all terminal points
Easy potential distribution thanks to standardized plug-in bridges
Downloads
Phoenix 1414064 CAD data International.dxfPhoenix 1414064 CAD data International.pdfPhoenix 1414064 CAD data International.stpPhoenix 1414064 Certification English.pdfPhoenix 1414064 Certification International.pdfPhoenix 1414064 Manufacturers declaration English.pdfPhoenix 1414064 Manufacturers declaration International.pdfPhoenix 1414064 Safety note English.pdfPhoenix 1414064 Tender Text English.zipPhoenix 1414064 User instructions for the Ex Area English.pdf
