Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Code: 41029

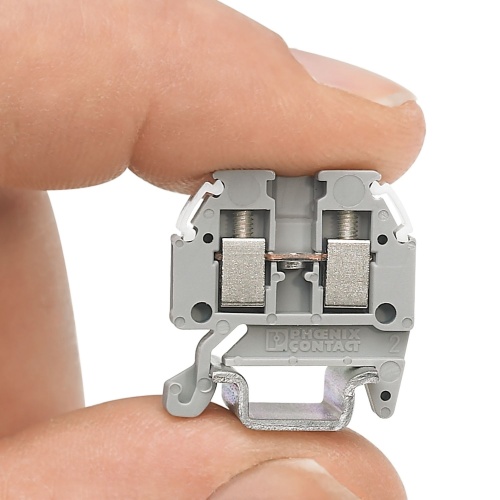

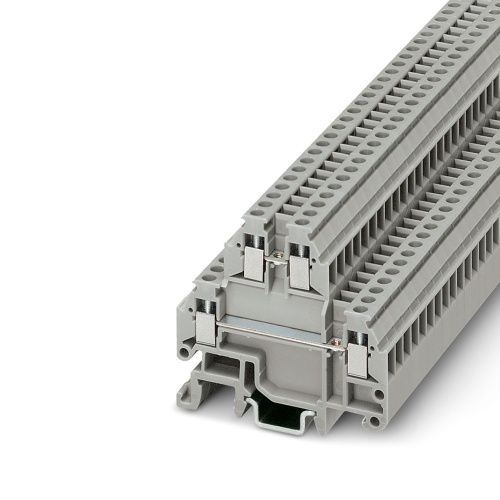

Phoenix Contact 1414129 Micro terminal MTTB 1,5
Normally In Stock
MTTB 1,5 Phoenix Contact 1414129 Micro Terminal - MTTB 1,5 Screw Connection 2 Level 4.2 mm with 4 Connections. Not Grounded, Not Fused Gray. 400 Volt, 17.5 Amp max rating.
Condition: New
Usually Ships Same day or Next Day$7.79
Sale Price
$6.49
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 1414129 The micro terminal has specifications that include a nominal voltage of 400 V and a nominal current of 17.5 A, which requires a screw connection at both the first and second levels to secure it in place. The rated cross section ranges from 0.14 mm2 to 1.5 mm2, while the mounting types supported are NS 15, NS 35/7,5, and NS 35/15. Additionally, the terminal comes in a gray color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
400 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
4.2 mm
Terminal Block Number of Connections
4
Terminal Block Number of Levels
2
Terminal Block Component Color
Gray
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Amperage
17.5 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Miniature Terminal Block
Sub Component
Mini Feed-Through Terminal Block
Features
Nominal cross section of 1.5 mm²

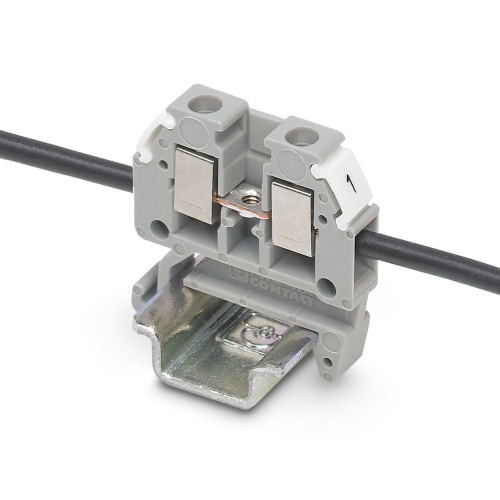

Snap-on foot for NS 15 and NS 35 DIN rails
Design width of just 4.2 mm

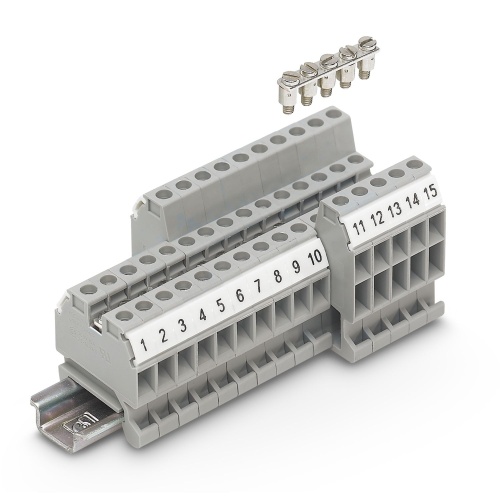

Clear arrangement thanks to marking of all terminal points
Space saving thanks to compact design and mounting option on a 15 mm DIN rail
Wide range of labeling options
Bridging option on both levels
