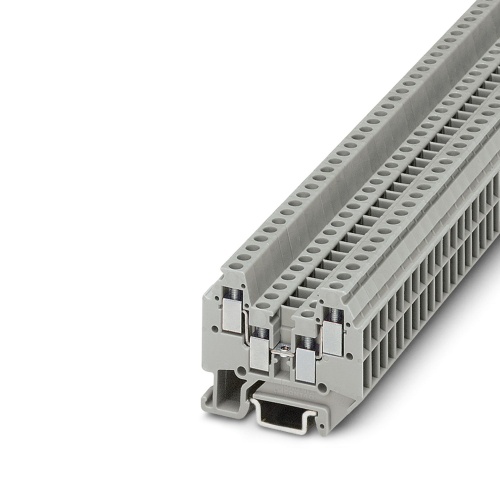

Phoenix Contact 3001679 Micro terminal MT 1,5-QUATTRO
Normally In Stock
Code: 41027
MT 1,5-QUATTRO Phoenix Contact 3001679 Micro Terminal - MT 1,5-QUATTRO Screw Connection 2 Level 4.2 mm with 4 Connections. Not Grounded, Not Fused Gray. 400 Volt, 16 Amp max rating.
Condition: New
Usually Ships Same day or Next Day$6.08
Sale Price
$5.07
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 3001679 A micro terminal has a nominal voltage of 400 V and a nominal current of 17.5 A with a screw connection method, featuring a rated cross-sectional area of 1.5 mm², which can accommodate a range of 0.14 mm² to 1.5 mm², and is mounted using an NS 15 type mounting system with a gray color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
400 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
4.2 mm
Terminal Block Number of Connections
4
Terminal Block Number of Levels
2
Terminal Block Component Color
Gray
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Amperage
16 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Miniature Terminal Block
Sub Component
Mini Feed-Through Terminal Block
Features
Nominal cross section of 1.5 mm²
Design width of just 4.2 mm
Space saving thanks to compact design and mounting option on a 15 mm DIN rail
Clear arrangement thanks to marking of all terminal points
Snap-on foot for NS 15 DIN rails

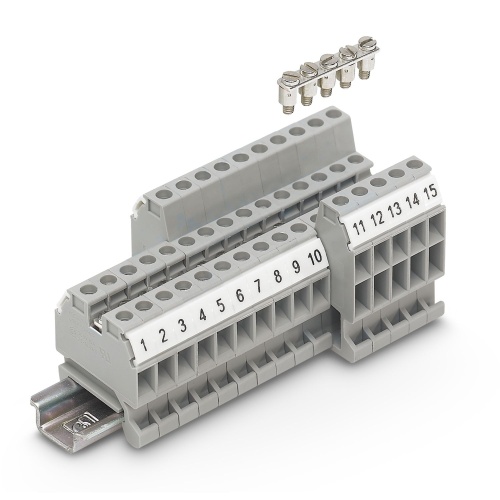

Easy potential distribution thanks to standardized screw bridges in the terminal center
