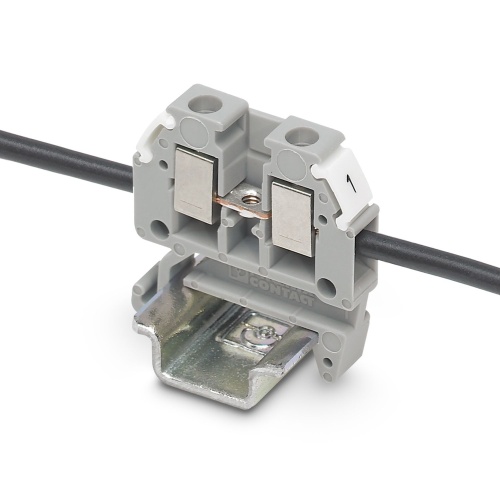

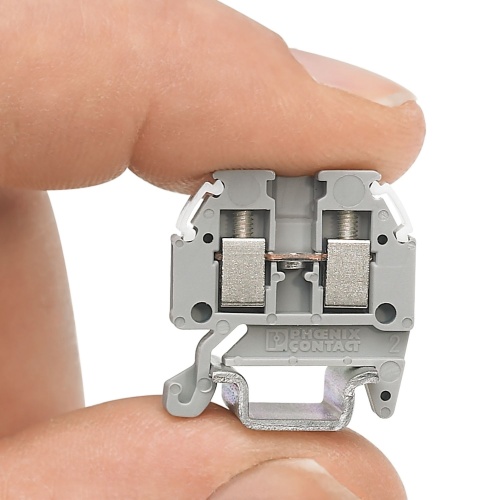

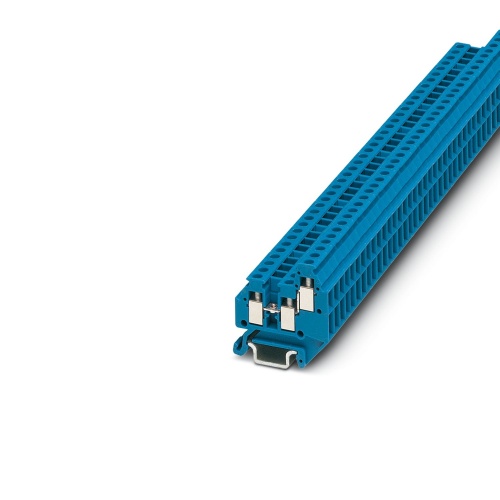

Phoenix Contact 3025532 Micro terminal MT 1,5-TWIN BU
Normally In Stock
Code: 41026
MT 1,5-TWIN BU Phoenix Contact 3025532 Micro Terminal - MT 1,5-TWIN BU Screw Connection 2 Level 4.2 mm with 3 Connections. Not Grounded, Not Fused Blue. 400 Volt, 17.5 Amp max rating.
Condition: New
Usually Ships Same day or Next Day$5.47
Sale Price
$4.56
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 3025532 The micro terminal has a nominal voltage of 400V and a maximum current of 17.5A with a screw connection method. The rated cross-section is 1.5mm², but can range between 0.14mm² to 1.5mm², and it uses an NS15 mounting type, is blue in color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
400 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
4.2 mm
Terminal Block Number of Connections
3
Terminal Block Number of Levels
2
Terminal Block Component Color
Blue
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Amperage
17.5 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Miniature Terminal Block
Sub Component
Mini Feed-Through Terminal Block
Features
Design width of just 4.2 mm
Nominal cross section of 1.5 mm²
Clear arrangement thanks to marking of all terminal points
Space saving thanks to compact design and mounting option on a 15 mm DIN rail
Easy potential distribution thanks to standardized screw bridges in the terminal center
Snap-on foot for NS 15 DIN rails
