Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Code: 41023

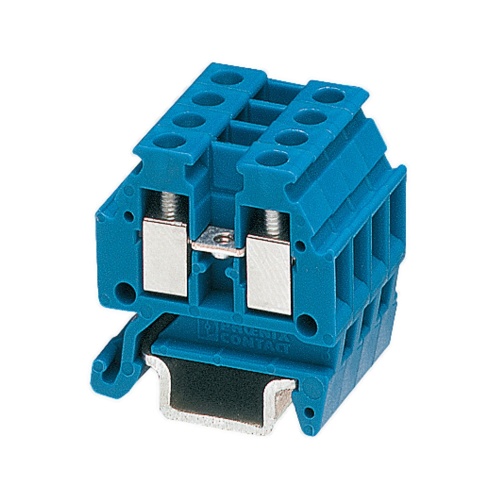

Phoenix Contact 3003363 Micro terminal MT 1,5 BU
Normally In Stock
MT 1,5 BU Phoenix Contact 3003363 Micro Terminal - MT 1,5 BU Screw Connection 1 Level 4.2 mm with 2 Connections. Not Grounded, Not Fused Blue. 400 Volt, 17.5 Amp max rating.
Condition: New
Usually Ships Same day or Next Day$3.19
Sale Price
$2.66
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 3003363 A micro terminal has a nominal voltage of 400V and a nominal current of 17.5A, featuring two connections with screw connection methods and rated cross sections ranging from 0.14mm² to 1.5mm², mounted using the NS15 type and colored in blue.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
400 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
4.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Component Color
Blue
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Amperage
17.5 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Miniature Terminal Block
Sub Component
Mini Feed-Through Terminal Block
Features
Nominal cross section of 1.5 mm²
Design width of just 4.2 mm
Clear arrangement thanks to marking of all terminal points
Space saving thanks to compact design and mounting option on a 15 mm DIN rail
Easy potential distribution thanks to standardized screw bridges in the terminal center
Snap-on foot for NS 15 DIN rails
Downloads
Code: 41023
Phoenix Contact 3003363 Micro terminal MT 1,5 BU
$3.19
Sale Price
$2.66
MUST BUY IN PACKS OF 50
