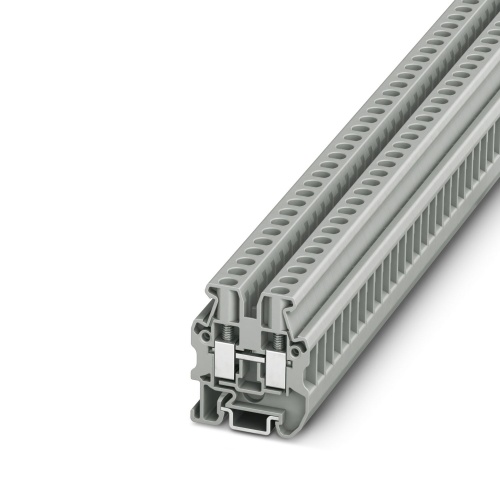

Phoenix Contact 3248035 Mini feed-through terminal block MUT 4
Normally In Stock
Code: 41020
MUT 4 Phoenix Contact 3248035 Mini Feed Through Terminal Block - MUT 4 Screw Connection 1 Level 6.2 mm with 2 Connections. Not Grounded, Not Fused Gray. 500 Volt, 32 Amp max rating.
Condition: New
Usually Ships Same day or Next Day$1.90
Sale Price
$1.58
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3248035 A mini feed-through terminal block has a nominal voltage of 500 V and can handle a maximum current of 32 A with two connections available at one position, using a screw connection method for secure attachment. The rated cross section is 4 mm2 but can vary between 0.2 mm2 to 6 mm2, and it mounts on an NS 15 type base while having a gray color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
500 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
6.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Component Color
Gray
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Min Wire Size
24
Terminal Block Max Wire Size
10
Terminal Block Amperage
32 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Miniature Terminal Block
Sub Component
Mini Feed-Through Terminal Block
Features
Space saving thanks to compact design and mounting option on a 15 mm DIN rail
Clear arrangement thanks to marking of all terminal points
Easy potential distribution thanks to standardized plug-in bridges
Downloads
Phoenix 3248035 CAD data International.dxfPhoenix 3248035 CAD data International.pdfPhoenix 3248035 CAD data International.stpPhoenix 3248035 Certification English.pdfPhoenix 3248035 Certification International.pdfPhoenix 3248035 Manufacturers declaration English.pdfPhoenix 3248035 Manufacturers declaration International-2.pdfPhoenix 3248035 Manufacturers declaration International.pdfPhoenix 3248035 Safety note English.pdfPhoenix 3248035 Tender Text English.zipPhoenix 3248035 User instructions for the Ex Area English.pdf
