Code: 41014

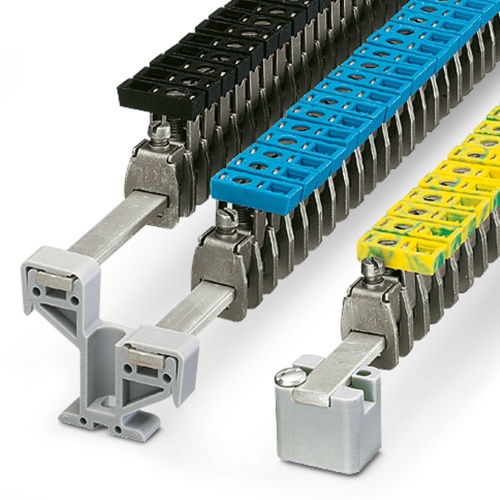

Phoenix Contact 3006182 Installation terminal block UIK 35
Normally In Stock
UIK 35 Phoenix Contact 3006182 Installation Terminal Block - UIK 35 Screw Connection 1 Level 15.2 mm with 2 Connections. Not Grounded, Not Fused Gray. 800 Volt, 125 Amp max rating.
Condition: New
Usually Ships Same day or Next Day$22.98
Sale Price
$19.15
MUST BUY IN PACKS OF 30
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3006182 The installation terminal block features an 800 V nominal voltage and a maximum of 125 A nominal current. It utilizes a screw connection method for attachment and is rated for cross sections ranging from 0.75 mm2 to 35 mm2. The mounting type options include NS 35/7,5, NS 35/15, and NS 32, while the terminal block itself has a standard gray color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
800 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
15.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Component Color
Gray
Terminal Block Connection Method
Screw Connection
Terminal Block Amperage
125 Amp
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
2
Terminal Block Min Wire Size
18
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Installation Terminal Block
Features
Installation terminal blocks with a particularly low-profile design for use in flat distributors
The asymmetrical arrangement of the terminal blocks on the DIN rail enables the neutral busbar to be routed past the terminal blocks
Downloads
Phoenix 3006182 CAD data International.dxfPhoenix 3006182 CAD data International.pdfPhoenix 3006182 CAD data International.stpPhoenix 3006182 Manufacturers declaration International-2.pdfPhoenix 3006182 Manufacturers declaration International.pdfPhoenix 3006182 Safety note English.pdfPhoenix 3006182 Tender Text English.zip
