Code: 41013

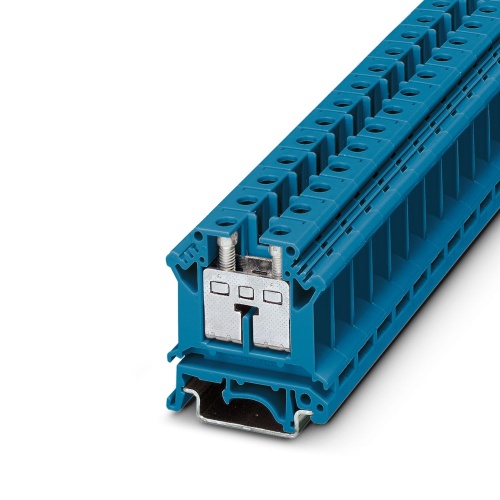

Phoenix Contact 3006205 Installation terminal block UIK 16 BU
Normally In Stock
UIK 16 BU Phoenix Contact 3006205 Installation Terminal Block - UIK 16 BU Screw Connection 1 Level 12.2 mm with 2 Connections. Not Grounded, Not Fused Blue. 400 Volt, 76 Amp max rating.
Condition: New
Usually Ships Same day or Next Day$19.55
Sale Price
$16.29
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3006205 The terminal block features a nominal voltage of 400V and a nominal current capacity of 76A, with a screw connection method. The rated cross-sectional area ranges from 2.5mm² to 25mm², while the mounting types include NS35/7.5, NS35/15, and NS32, with a blue color scheme.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
400 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
12.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Component Color
Blue
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
4
Terminal Block Amperage
76 Amp
Terminal Block Min Wire Size
12
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Installation Terminal Block
Features
Installation terminal blocks with a particularly low-profile design for use in flat distributors

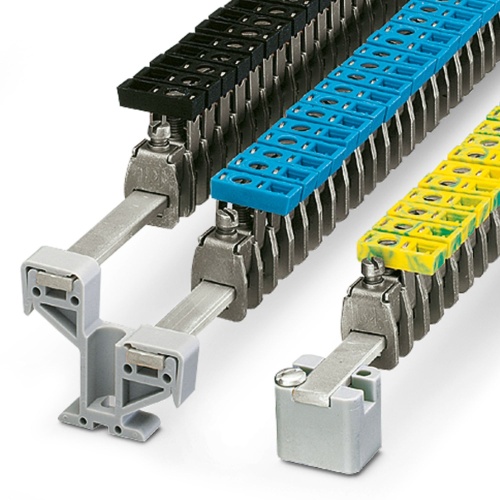

The asymmetrical arrangement of the terminal blocks on the DIN rail enables the neutral busbar to be routed past the terminal blocks
Downloads
Phoenix 3006205 CAD data International.dxfPhoenix 3006205 CAD data International.pdfPhoenix 3006205 CAD data International.stpPhoenix 3006205 Manufacturers declaration International-2.pdfPhoenix 3006205 Manufacturers declaration International.pdfPhoenix 3006205 Safety note English.pdfPhoenix 3006205 Tender Text English.zip
