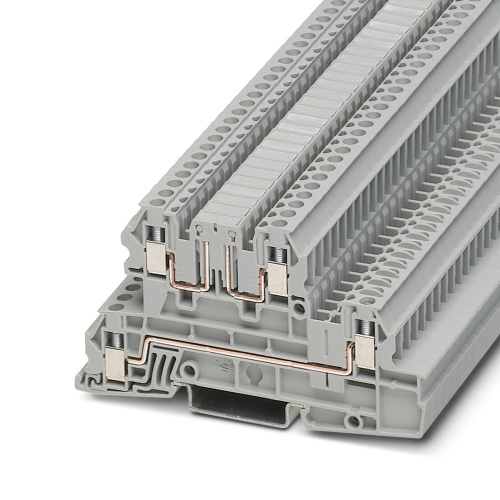

Phoenix Contact 3076033 Installation level terminal block UTI 2,5-L/LB
Normally In Stock
Code: 41007
UTI 2,5-L/LB Phoenix Contact 3076033 Installation Terminal Block - UTI 2,5-L/LB Screw Connection 3 Level 5.2 mm with 4 Connections. Not Grounded, Not Fused Gray. 400 Volt, 24 Amp max rating.
Condition: New
Usually Ships Same day or Next Day$5.59
Sale Price
$4.66
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3076033 A terminal block with a nominal voltage of 400V and a nominal current capacity of 24A features screw connections rated for cross sections ranging from 0.2mm² to 4mm², available in two designs that also specify mounting types as NS 35/7.5 and NS 35/15, both in gray color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
400 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
5.2 mm
Terminal Block Number of Connections
4
Terminal Block Number of Levels
3
Terminal Block Component Color
Gray
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
12
Terminal Block Min Wire Size
24
Terminal Block Amperage
24 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Installation Terminal Block
Sub Component
Installation Level Terminal Block
Features
The installation terminal block features a particularly low-profile design and is suitable for wiring in flat installation distributors
Downloads
Phoenix 3076033 Application Note International.pdfPhoenix 3076033 CAD data International.dxfPhoenix 3076033 CAD data International.pdfPhoenix 3076033 CAD data International.stpPhoenix 3076033 Manufacturers declaration English.pdfPhoenix 3076033 Manufacturers declaration International.pdfPhoenix 3076033 Safety note English.pdfPhoenix 3076033 Tender Text English.zip
