Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Code: 41002

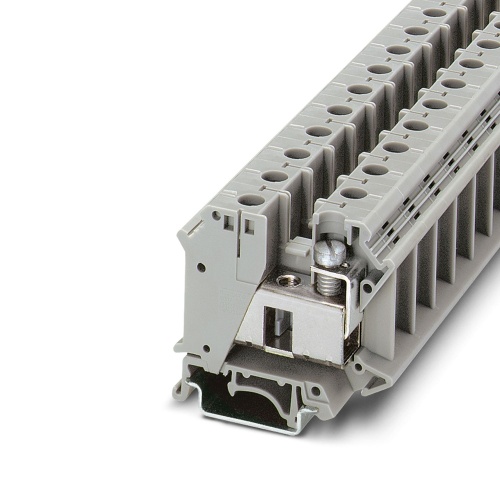

Phoenix Contact 3074088 Installation terminal block UTI 35
Normally In Stock
UTI 35 Phoenix Contact 3074088 Installation Terminal Block - UTI 35 Screw Connection 1 Level 15.2 mm with 2 Connections. Not Grounded, Not Fused Gray. 800 Volt, 125 Amp max rating.
Condition: New
Usually Ships Same day or Next Day$11.10
Sale Price
$9.25
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3074088 The terminal block is available in various configurations, including a screw connection and different rated cross sections ranging from 0.75 to 35 mm². The block can be mounted using two types of mounting systems, namely the NS 35/7.5 and NS 35/15. Its color is a standard gray tone.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
800 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
15.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Component Color
Gray
Terminal Block Connection Method
Screw Connection
Terminal Block Amperage
125 Amp
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
2
Terminal Block Min Wire Size
18
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Installation Terminal Block
Features
The installation terminal block features a particularly low-profile design and is suitable for wiring in flat installation distributors

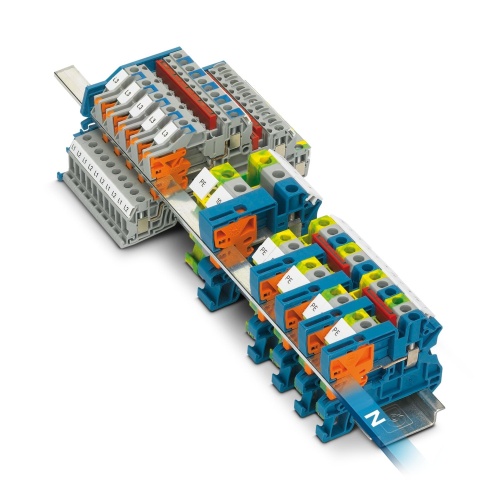

The asymmetrical arrangement of the terminal blocks on the DIN rail enables the neutral busbar to be routed past the terminal blocks
