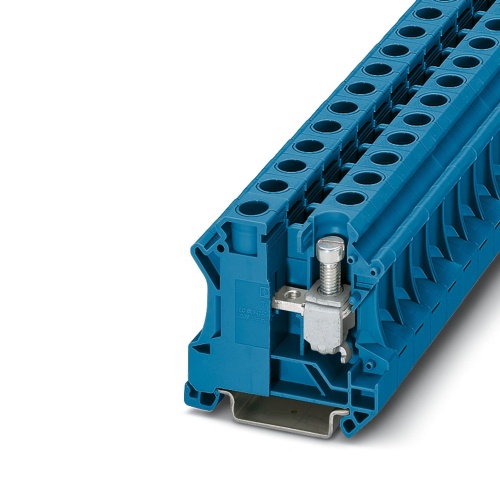

Phoenix Contact 3075728 Installation terminal block UTI 16 BU
Normally In Stock
Code: 41001
UTI 16 BU Phoenix Contact 3075728 Installation Terminal Block - UTI 16 BU Screw Connection 1 Level 12.2 mm with 2 Connections. Not Grounded, Not Fused Blue. 400 Volt, 76 Amp max rating.
Condition: New
Usually Ships Same day or Next Day$5.98
Sale Price
$4.98
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3075728 The terminal block has a nominal voltage of 400 V and can handle a nominal current of 76 A. It features a screw connection with the first level of connection on the right side, allowing for secure connections. The rated cross-sectional area is 16 mm², but it can accommodate cross-sections from 6 mm² to 25 mm². The terminal block comes in two mounting types: NS 35/7.5 and NS 35/15, and has a blue color scheme.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
400 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
12.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Component Color
Blue
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
4
Terminal Block Amperage
76 Amp
Terminal Block Min Wire Size
10
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Installation Terminal Block
Features

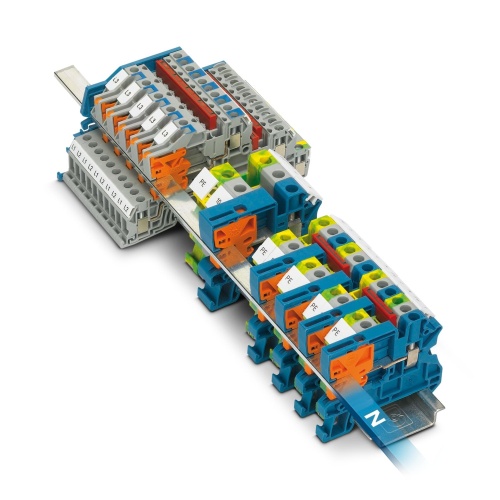

The installation terminal block features a particularly low-profile design and is suitable for wiring in flat installation distributors
The asymmetrical arrangement of the terminal blocks on the DIN rail enables the neutral busbar to be routed past the terminal blocks
