Code: 41000

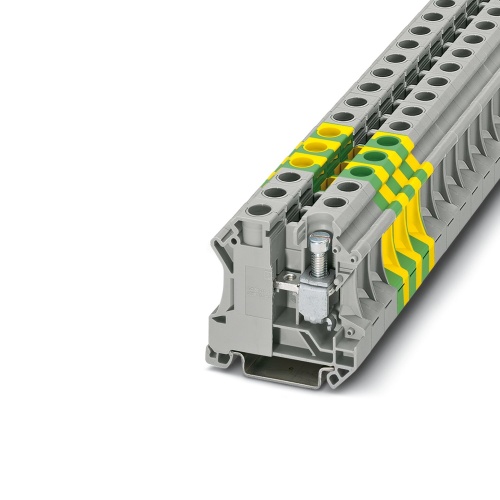

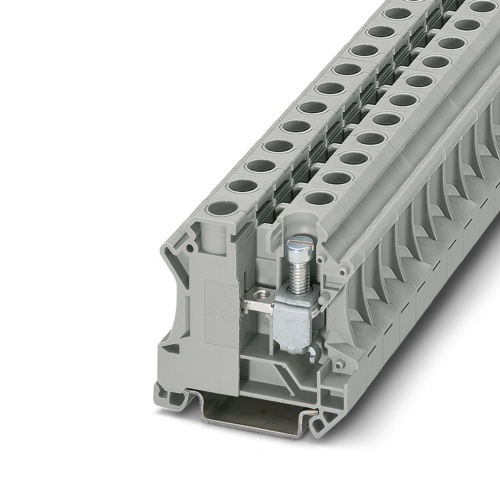

Phoenix Contact 3073827 Installation terminal block UTI 16
Normally In Stock
UTI 16 Phoenix Contact 3073827 Installation Terminal Block - UTI 16 Screw Connection 1 Level 12.2 mm with 2 Connections. Not Grounded, Not Fused Gray. 400 Volt, 76 Amp max rating.
Condition: New
Usually Ships Same day or Next Day$5.47
Sale Price
$4.56
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3073827 The installation terminal block features a nominal voltage of 400 V and a nominal current capacity of 76 A. It utilizes screw connections with the first level connection positioned on the right side, allowing for secure and reliable connections. The rated cross-section ranges from 6 mm2 to 25 mm2, while it can be mounted using either NS 35/7.5 or NS 35/15 mounting types, and is characterized by a gray color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
400 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
12.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Component Color
Gray
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
4
Terminal Block Amperage
76 Amp
Terminal Block Min Wire Size
10
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Installation Terminal Block
Features

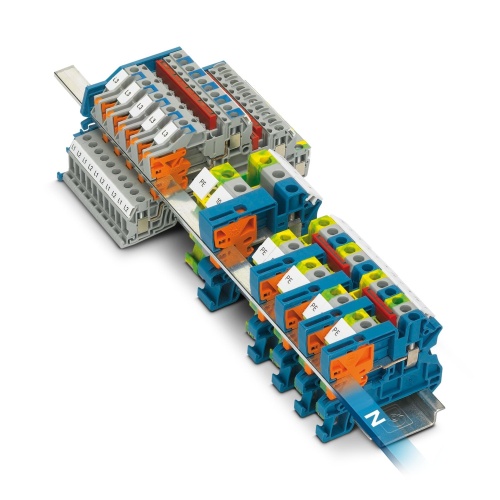

The asymmetrical arrangement of the terminal blocks on the DIN rail enables the neutral busbar to be routed past the terminal blocks
The installation terminal block features a particularly low-profile design and is suitable for wiring in flat installation distributors
