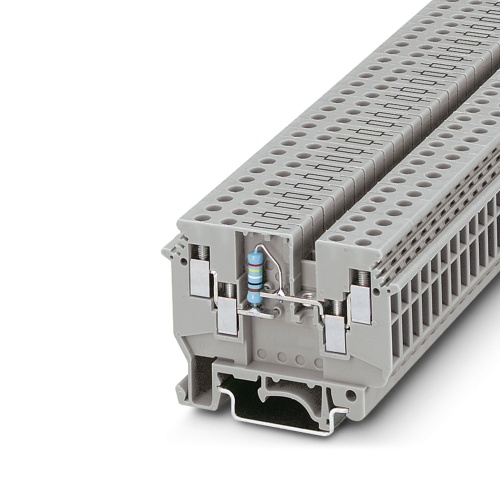

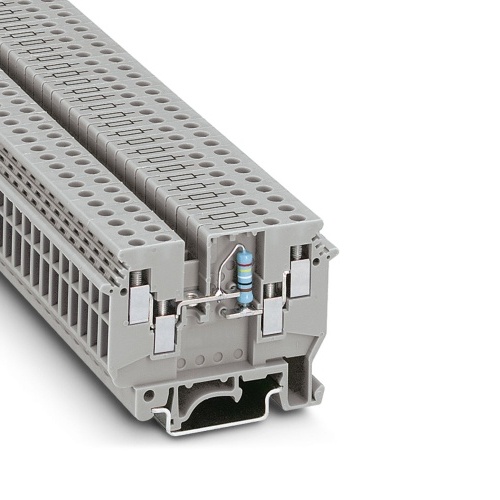

Phoenix Contact 3232011 Feed-through terminal block UDK 4-DUR 249 P/P
Normally In Stock
Code: 40999
UDK 4-DUR 249 P/P Phoenix Contact 3232011 Feed Through Terminal Block - UDK 4-DUR 249 P/P Screw Connection 1 Level 6.2 mm with 4 Connections. Not Grounded, Not Fused Gray. 630 Volt, 32 Amp max rating.
Condition: New
Usually Ships Same day or Next Day$23.80
Sale Price
$19.83
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3232011 A feed-through terminal block is available with a test socket for easy insertion of test plugs, featuring specifications including a nominal voltage of 630 V and a nominal current capacity of 32 A. The unit can accommodate four connections and utilizes screw connection method, while the rated cross-section ranges from 0.2 mm2 to 6 mm2 across multiple levels, with various mounting types such as NS 35/7,5, NS 35/15, and NS 32, and a color of gray.
Specifications
Terminal Block Voltage Rating
630 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
6.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
4
Terminal Block Component Color
Gray
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Min Wire Size
24
Terminal Block Max Wire Size
10
Terminal Block Amperage
32 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Component Terminal Block
Sub Component
Feed-Through Terminal Block
Features
The four-conductor connection enables user-friendly wiring
The constant circuits common in process automation transmit the measured values as a load-independent current of 0 ... 20 mA
The lower level is assigned to the measuring line while the upper level is used for voltage pick-off via the 249 Ohm resistor
A voltage signal pick-off can be implemented in the measuring line using this terminal block, enabling the signal to be used as an analog signal for process computers
