Code: 409711

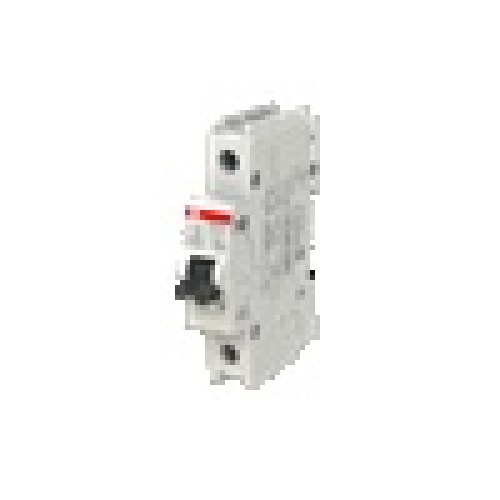

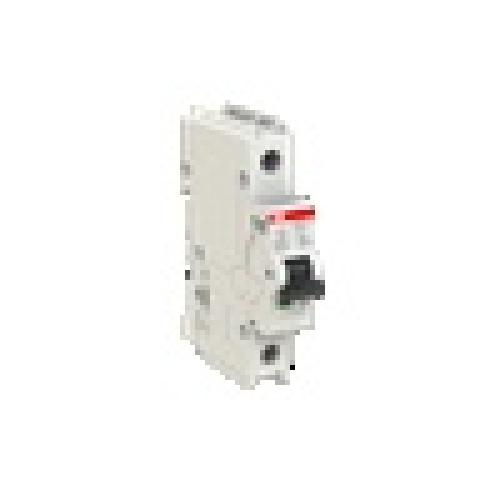

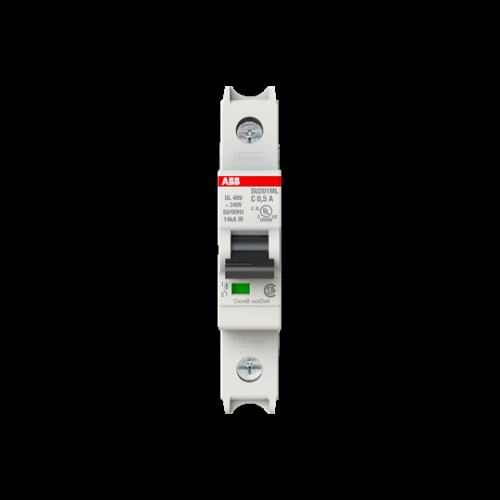

ABB SU201ML-C0.5 Mini CB - 0.5 Amp, Single Pole
Normally In Stock
ABB SU201ML-C0.5 - 230 VAC, 48 VDC - Single Pole - 0.5 Amp
Condition: New
Usually ships Same Day or Next Day$52.25
Sale Price
$43.54
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
ABB SU201ML-C0.5 - ABB's UL UL 489 series of miniature circuit breakers provide a compact solution for branch circuit protection needs. These current-limiting breakers are DIN rail mounted and come with up to three trip curves for maximum circuit protection. They hold a variety of global certifications (UL, CSA, IEC, CE) and feature UL current limiting, fast breaking times, a bus connection system, a broad range of accessories, variable depth handle options, CE certification, DIN rail mounting, finger-safe terminals, multi-function terminals, and suitability for reverse feed (excluding S200UDC). They are UL UL 489 listed as branch circuit protective devices with UL File #E212323 and E312425.
Specifications
Breaker Amperage Rating
0.5 Amp
Breaker Number of Poles
Single Pole
Breaker Voltage Rating
48 VDC
Breaker Voltage Rating
230 VAC
Component
Miniature Circuit Breaker
Manufacturer
ABB
Features
High performance MCB with 14 kA interrupting capacity acc. to UL 489 / CSA 22.2 No. 5 and 15 kA breaking capacity acc. to IEC/EN 60947-2
Certified up to In = 40 A at 480 Y/277 V AC acc. to UL 489 / CSA 22.2 No. 5
Certified for AC and DC use acc. to UL and CSA
40 °C reference temperature acc. to UL and CSA
Current limiting acc. to UL 489
Clear contact position indication in red/green (”real CPI“)
