Code: 40967

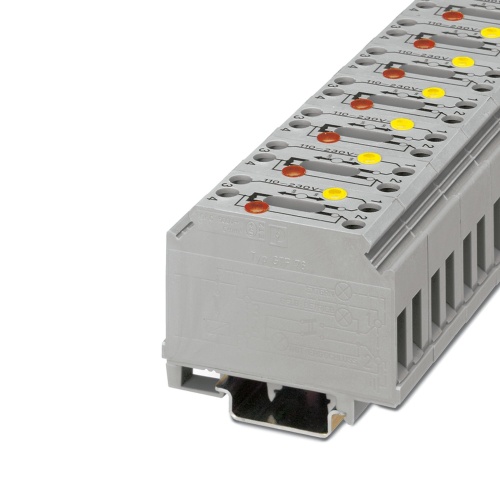

Phoenix Contact 3121012 Disconnect terminal block GTF 76/230
Normally In Stock
GTF 76/230 Phoenix Contact 3121012 Disconnect Terminal Block - GTF 76/230 Screw Connection 1 Level 22.5 mm with 2 Connections. Grounded, Not Fused Gray. 110 Volt, 250 Volt, 41 Amp max rating.
Condition: New
Usually ships within 7-14 days. Call for ship time.$105.52
Sale Price
$87.93
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3121012 The terminal block has a nominal voltage of 250V and can handle a maximum current of 41A. It features a screw connection method, with a rated cross-sectional area of 6mm². The actual cross-sectional area ranges from 0.5mm² to 10mm². Available mounting options include NS35/7.5, NS35/15, and NS32, and it is characterized by a gray color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Fused
Not Fused
Terminal Block Width
22.5 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Component Color
Gray
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Grounded
Terminal Block Max Wire Size
8
Terminal Block Min Wire Size
20
Terminal Block Disconnect
Removable Disconnect
Terminal Block Amperage
41 Amp
Terminal Block Voltage Rating
110 Volt
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Disconnect Terminal Block
Features

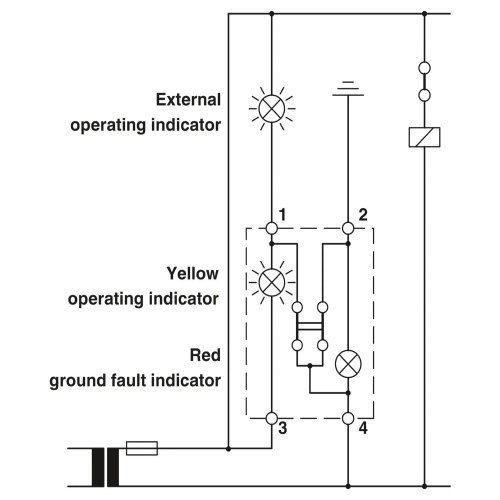

When the disconnect slide is closed, switch position "on", the yellow light indicates grounded normal operation

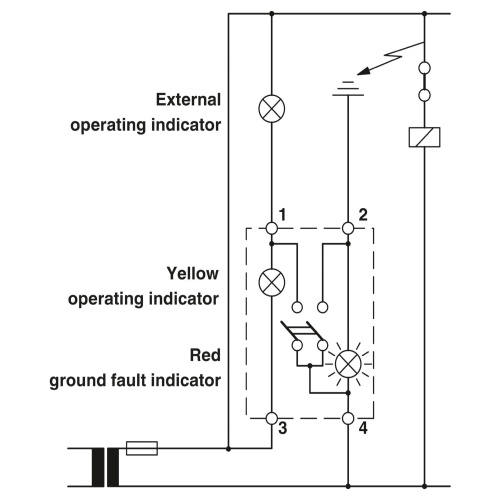

Once the disconnect slide has been opened to the "off" position, the red light indicates whether there is a ground fault in the control circuit
