Code: 40966

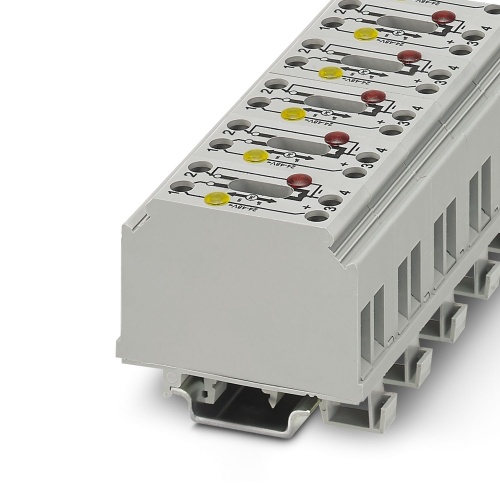

Phoenix Contact 3121025 Disconnect terminal block GTF 76/ 48
Normally In Stock
GTF 76/ 48 Phoenix Contact 3121025 Disconnect Terminal Block - GTF 76/ 48 Screw Connection 1 Level 22.5 mm with 2 Connections. Grounded, Not Fused Gray. 24 Volt, 48 Volt, 41 Amp max rating.
Condition: New
Usually Ships Same day or Next Day$130.93
Sale Price
$109.11
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3121025 The terminal block has specifications of 24V nominal voltage and 41A maximum current, featuring a screw connection method with a rated cross-section of 6mm². It can accommodate various cross-sectional sizes between 0.5mm² and 10mm² and is designed to be mounted using NS35/7.5, NS35/15, or NS32 modules, while its color is gray.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
24 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
22.5 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Component Color
Gray
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Grounded
Terminal Block Max Wire Size
8
Terminal Block Min Wire Size
20
Terminal Block Disconnect
Removable Disconnect
Terminal Block Amperage
41 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Disconnect Terminal Block
Features

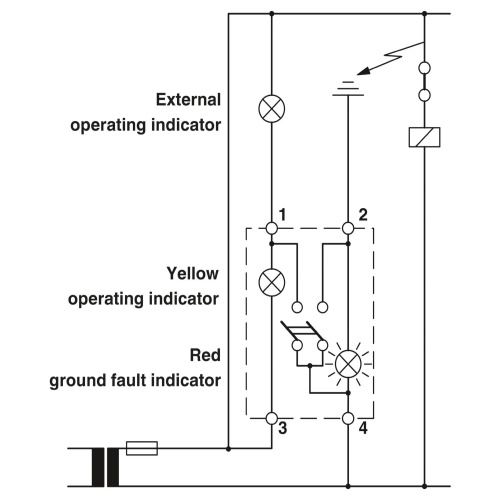

Once the disconnect slide has been opened to the "off" position, the red light indicates whether there is a ground fault in the control circuit

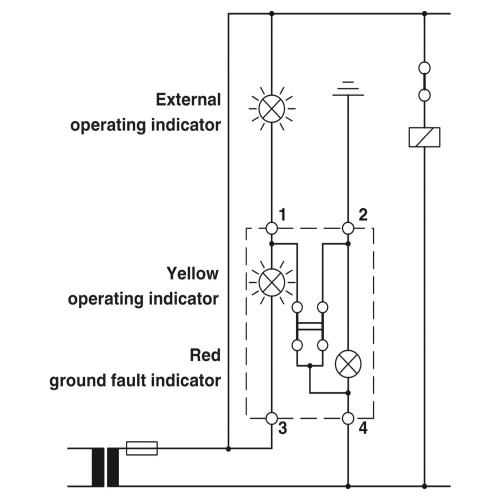

When the disconnect slide is closed, switch position "on", the yellow light indicates grounded normal operation
