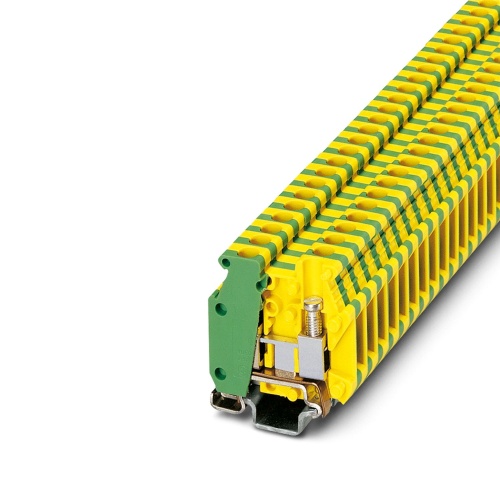

Phoenix Contact 1413117 Mini protective conductor terminal block MBK 3/E-Z-PE
Normally In Stock
Code: 40957

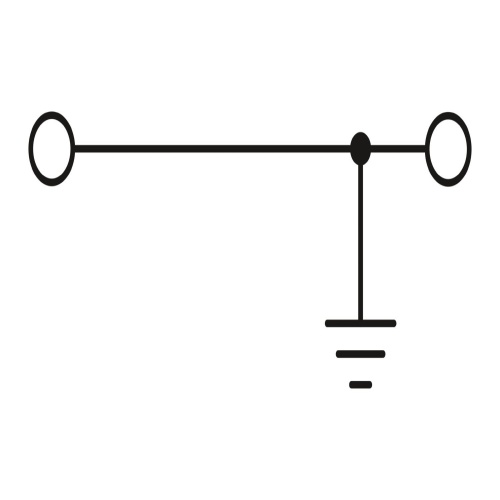

MBK 3/E-Z-PE Phoenix Contact 1413117 Mini ground Terminal Block - MBK 3/E-Z-PE Screw Connection 1 Level 5.2 mm with 2 Connections. Grounded, Not Fused Green-Yellow. , max rating.
Condition: New
Usually Ships Same day or Next Day*NON-CANCELLABLE, NON-RETURNABLE*
$12.85
Sale Price
$10.71
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 1413117 For applications requiring mini protective conductor terminal blocks with high voltage insulation, a partition plate must be used to ensure safety when working with voltages above 250 V and connecting only two connections via screw fastening at one level, featuring cross-sections ranging from 0.2 mm2 to 4 mm2, mounted on an NS15 type base and colored green-yellow.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Fused
Not Fused
Terminal Block Width
5.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Connection Method
Screw Connection
Terminal Block Max Wire Size
12
Terminal Block Min Wire Size
24
Terminal Block Grounded
Grounded
Terminal Block Component Color
Green/Yellow
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Ground Terminal Block
Sub Component
Mini Ground Terminal Block
Features
If the mini ground terminal blocks are at the end of a terminal strip, an end bracket, e.g., E/MK, should be used
The green-yellow housing clearly indicates the protective conductor function of the terminal block
The mini ground terminal blocks are electrically connected to the DIN rail via their foot elements, which means that the DIN rail can be used as a grounding busbar
These miniature ground terminals were designed specifically for the 15 mm DIN rail (NS 15) in accordance with EN 60715
Downloads
Phoenix 1413117 CAD data International.dxfPhoenix 1413117 CAD data International.pdfPhoenix 1413117 CAD data International.stpPhoenix 1413117 Manufacturers declaration English.pdfPhoenix 1413117 Manufacturers declaration International.pdfPhoenix 1413117 Safety note English.pdfPhoenix 1413117 Tender Text English.zip
