Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

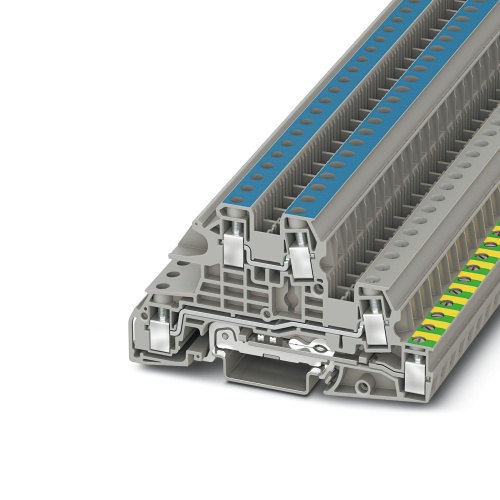

Phoenix Contact 3076041 Installation protective conductor terminal block UTI 6-PE/L/N
Normally In Stock
Code: 40878
UTI 6-PE/L/N Phoenix Contact 3076041 Installation ground Terminal Block - UTI 6-PE/L/N Screw Connection 2 Level 8.2 mm with 5 Connections. Grounded, Not Fused Gray. 400 Volt, 38 Amp max rating.
Condition: New
Usually Ships Same day or Next Day$7.98
Sale Price
$6.65
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3076041 A protective conductor terminal block is available with a nominal voltage of 400 V and a maximum current capacity of 38 A, featuring screw connections at multiple levels. The rated cross-sectional area ranges from 0.2 mm2 to 10 mm2, with three different mounting types (NS 35/7.5, NS 35/15) available in gray color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
400 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
8.2 mm
Terminal Block Number of Levels
3
Terminal Block Number of Connections
5
Terminal Block Component Color
Gray
Terminal Block Connection Method
Screw Connection
Terminal Block Min Wire Size
24
Terminal Block Grounded
Grounded
Terminal Block Max Wire Size
8
Component
Terminal Block
Manufacturer
Phoenix Contact
Terminal Block Amperage
38 Amp
Sub Component
Installation Terminal Block
Sub Component
Installation Ground Terminal Block
Features
The installation terminal block features a particularly low-profile design and is suitable for wiring in flat installation distributors
Downloads
Phoenix 3076041 CAD data International.dxfPhoenix 3076041 CAD data International.pdfPhoenix 3076041 CAD data International.stpPhoenix 3076041 Manufacturers declaration English.pdfPhoenix 3076041 Manufacturers declaration International.pdfPhoenix 3076041 Safety note English.pdfPhoenix 3076041 Tender Text English.zip
