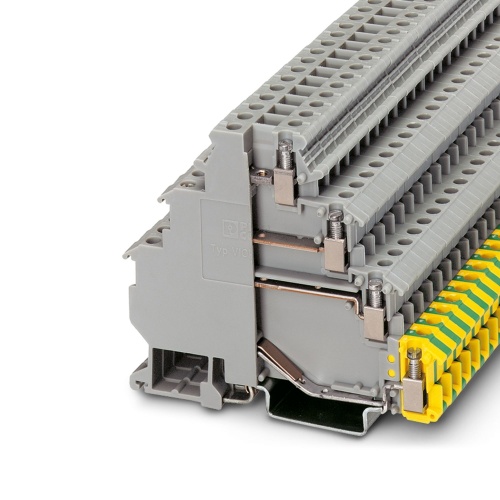

Phoenix Contact 3024465 Initiator/actuator terminal block VIOK 1,5-3D/PE-EX
Normally In Stock
Code: 40869
VIOK 1,5-3D/PE-EX Phoenix Contact 3024465 Sensor/actuator Terminal Block - VIOK 1,5-3D/PE-EX Screw Connection 3 Level 6.2 mm with 7 Connections. Grounded, Not Fused Gray. 400 Volt, 24 Amp max rating.
Condition: New
Usually Ships Same day or Next Day$19.92
Sale Price
$16.60
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3024465 A terminal block designed for initiators or actuators features a nominal voltage of 400 V and a maximum current of 24 A, utilizing a screw connection method at levels 2nd, 3rd, and 4th. The rated cross-sectional area is 2.5 mm², with permissible areas ranging from 0.2 mm² to 4 mm². It can be mounted using the NS 35/7,5 or NS 35/15 type mounting system and has a gray color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
400 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
6.2 mm
Terminal Block Number of Levels
4
Terminal Block Number of Connections
7
Terminal Block Component Color
Gray
Terminal Block Connection Method
Screw Connection
Terminal Block Max Wire Size
12
Terminal Block Min Wire Size
24
Terminal Block Grounded
Grounded
Terminal Block Amperage
24 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Sensor-Acuator Terminal Block
Downloads
Phoenix 3024465 CAD data International.dxfPhoenix 3024465 CAD data International.pdfPhoenix 3024465 CAD data International.stpPhoenix 3024465 Certification International.pdfPhoenix 3024465 Manufacturers declaration English.pdfPhoenix 3024465 Manufacturers declaration International.pdfPhoenix 3024465 Safety note English.pdfPhoenix 3024465 Spec Sheet.pdfPhoenix 3024465 Tender Text English.zipPhoenix 3024465 User instructions for the Ex Area English.pdf
