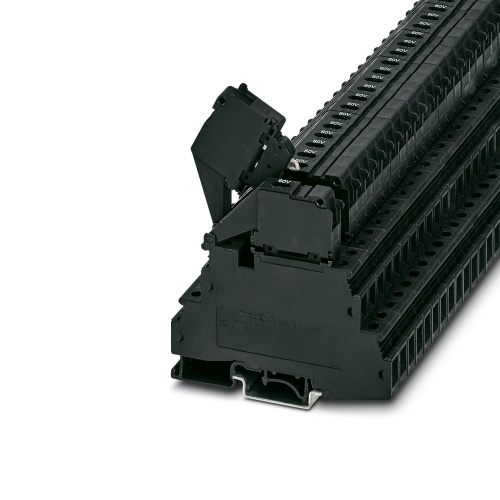

Phoenix Contact 0711580 Fuse modular terminal block UKK 5-HESILED 60 (5X20)
Normally In Stock
Code: 40847
Phoenix Contact 0711580 Fuse modular Terminal Block - UKK 5-HESILED 60 (5X20) - Fuse type: Glass Screw Connection 2 Level 8.2 mm with 4 Connections. Not Grounded, Fused Black. 400 Volt, 32 Amp max rating.
Condition: New
Usually Ships Same day or Next Day$39.74
Sale Price
$33.12
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 0711580 A fuse module terminal block is available in a glass or ceramic construction with a specific rating of 400V and 32A nominal current. It features screw connections and can accommodate rated cross-sections ranging from 0.2mm² to 4mm². The mounting type is specified as NS35/7.5, NS35/15, or NS32, and the device is characterized by a black color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
400 Volt
Terminal Block Fused
Fused
Terminal Block Width
8.2 mm
Terminal Block Number of Connections
4
Terminal Block Number of Levels
2
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
12
Terminal Block Min Wire Size
24
Terminal Block Component Color
Black
Terminal Block Amperage
32 Amp
Terminal Block Fuse Type
G - 5 X 20
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Fuse Terminal Block
Sub Component
Fuse Modular Terminal Block
Features
Comprehensive product range for cartridge fuse-links, automotive flange fuses, and thermal device circuit breaker plugs
Easy potential distribution thanks to continuous function shafts
Convenient testing of fuses with test points on both sides
Quick identification of faulty fuses and fuse holders regardless of the current direction thanks to an LED status indicator
Easily accessible fuse-links are easy to replace
Same shape as the feed-through, knife, and disconnect terminal blocks
Downloads
Phoenix 0711580 CAD data International.dxfPhoenix 0711580 CAD data International.pdfPhoenix 0711580 CAD data International.stpPhoenix 0711580 Manufacturers declaration English.pdfPhoenix 0711580 Manufacturers declaration International.pdfPhoenix 0711580 Safety note English.pdfPhoenix 0711580 Tender Text English.zip
