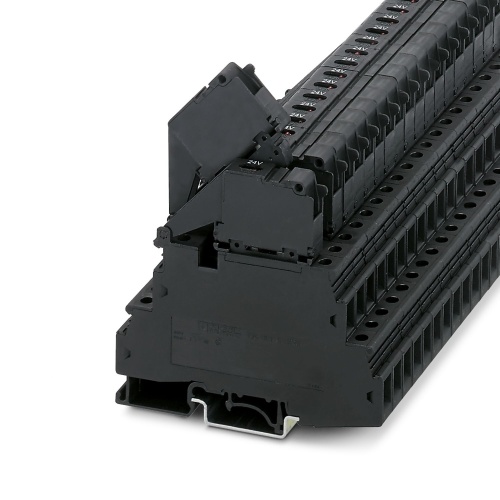

Phoenix Contact 3049000 Fuse modular terminal block UKK 5-HESILED 24 (5X20) 1MA
Normally In Stock
Code: 40846
UKK 5-HESILED 24 (5X20) 1MA Phoenix Contact 3049000 Fuse modular Terminal Block - UKK 5-HESILED 24 (5X20) 1MA - Fuse type: Glass Screw Connection 2 Level 8.2 mm with 4 Connections. Not Grounded, Fused Black. 400 Volt, 6.3 Amp max rating.
Condition: New
Usually Ships Same day or Next Day$37.09
Sale Price
$30.91
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3049000 The fuse terminal block features a glass ceramic fuse with a rating of G/5 x 20, designed for use in circuits with nominal voltages of 24 V and maximum currents of 6.3 A, connected via screw terminals with varying cross-sectional areas ranging from 0.2 mm² to 4 mm², suitable for mounting types NS 35/7.5, NS 35/15, and NS 32, characterized by a black color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Fused
Fused
Terminal Block Voltage Rating
24 Volt
Terminal Block Width
8.2 mm
Terminal Block Number of Connections
4
Terminal Block Number of Levels
2
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
12
Terminal Block Min Wire Size
24
Terminal Block Component Color
Black
Terminal Block Fuse Type
G - 5 X 20
Component
Terminal Block
Manufacturer
Phoenix Contact
Terminal Block Amperage
6.3 Amp
Sub Component
Fuse Terminal Block
Sub Component
Fuse Modular Terminal Block
Features
Comprehensive product range for cartridge fuse-links, automotive flange fuses, and thermal device circuit breaker plugs
Easy potential distribution thanks to continuous function shafts
Convenient testing of fuses with test points on both sides
Quick identification of faulty fuses and fuse holders regardless of the current direction thanks to an LED status indicator
Easily accessible fuse-links are easy to replace
Same shape as the feed-through, knife, and disconnect terminal blocks
