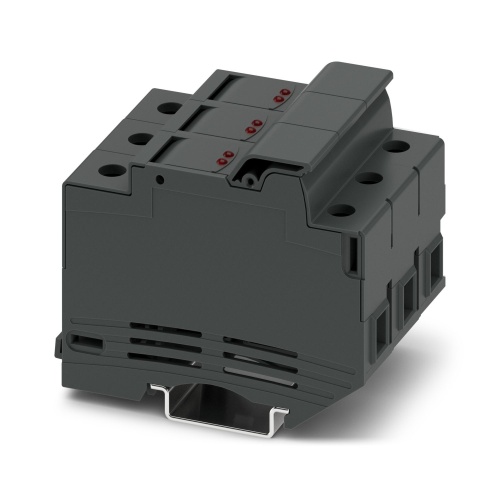

Phoenix Contact 3048629 Fuse modular terminal block UK 10,3-CC HESILED N 600 2POL
Normally In Stock
Code: 40836
UK 10,3-CC HESILED N 600 2POL Phoenix Contact 3048629 Fuse modular Terminal Block - UK 10,3-CC HESILED N 600 2POL - Fuse type: Glass Screw Connection 1 Level 36 mm with 2 Connections. Not Grounded, Fused Black. 600 Volt, 32 Amp max rating.
Condition: New
Usually ships within 7-14 days. Call for ship time.$73.67
Sale Price
$61.39
MUST BUY IN PACKS OF 5
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3048629 A modular terminal block with a fuse is available in two configurations, featuring Class CC fuses rated for 600 V and 30 A nominal current. The fuse types include glass or ceramics materials. Screw connections are used, while the rated cross-section ranges from 1 mm² to 16 mm². These terminal blocks can be mounted using NS 35/7,5 or NS 35/15 mounting types and have a black color, making them suitable for various applications.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Fused
Fused
Terminal Block Width
36 mm
Terminal Block Voltage Rating
600 Volt
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Component Color
Black
Terminal Block Max Wire Size
4
Terminal Block Min Wire Size
16
Terminal Block Amperage
32 Amp
Terminal Block Fuse Type
Class CC
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Fuse Terminal Block
Sub Component
Fuse Modular Terminal Block
Features
Easy to bridge
Fuse holder for fuses up to 600 V
For 10 x 38 CC fuse-links in accordance with UL 4248-4
2-pos. blocked version

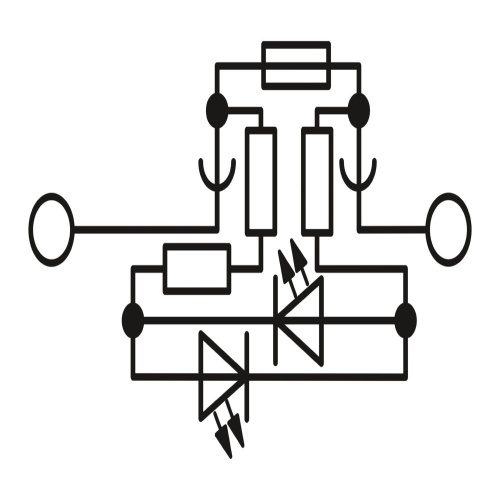

Quick identification of faulty fuses regardless of the current direction, thanks to LED status indicator
