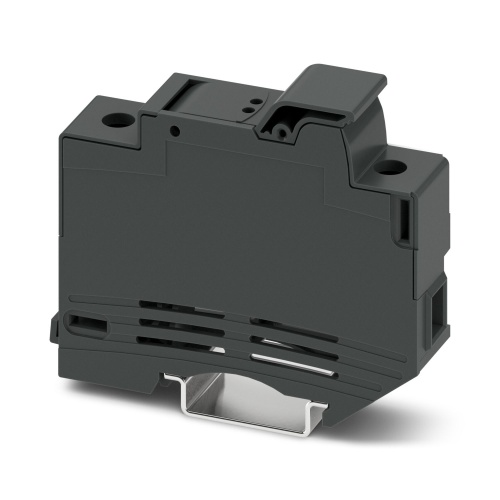

Phoenix Contact 3048386 Fuse modular terminal block UK 10,3-HESI N
Normally In Stock
Code: 40825
UK 10,3-HESI N Phoenix Contact 3048386 Fuse modular Terminal Block - UK 10,3-HESI N - Fuse type: Glass Screw Connection 1 Level 18 mm with 2 Connections. Not Grounded, Fused Black. 690 Volt, 32 Amp max rating.
Condition: New
Usually Ships Same day or Next Day$20.09
Sale Price
$16.74
MUST BUY IN PACKS OF 10
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3048386 The fuse being described is a modular terminal block with a ceramic fuse that measures 10.3 x 38mm and has a nominal voltage rating of 690V AC, capable of handling up to 32A of current per position, using a screw connection method, with rated cross-sections ranging from 1-16mm2 and mounting types available as NS35/7.5 or NS35/15, and is colored black.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Fused
Fused
Terminal Block Voltage Rating
690 Volt
Terminal Block Width
18 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Component Color
Black
Terminal Block Max Wire Size
4
Terminal Block Min Wire Size
16
Terminal Block Amperage
32 Amp
Terminal Block Fuse Type
10:3 X 38 mm
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Fuse Terminal Block
Sub Component
Fuse Modular Terminal Block
Features
Fuse holder for fuses up to 690 V AC
For 10 x 38 fuse-links in accordance with IEC 60269-2
Easy to bridge
