Code: 40812
Phoenix Contact 3000542 Fuse modular terminal block UK 5-HESILA 250 N
Normally In Stock
UK 5-HESILA 250 N Phoenix Contact 3000542 Fuse modular Terminal Block - UK 5-HESILA 250 N - fuse type: Glass Screw Connection 1 Level 8.2 mm with 2 Connections. Not Grounded, Fused Black. 500 Volt, 6.3 Amp max rating.
Condition: New
Usually Ships Same day or Next Day$21.52
Sale Price
$17.93
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.

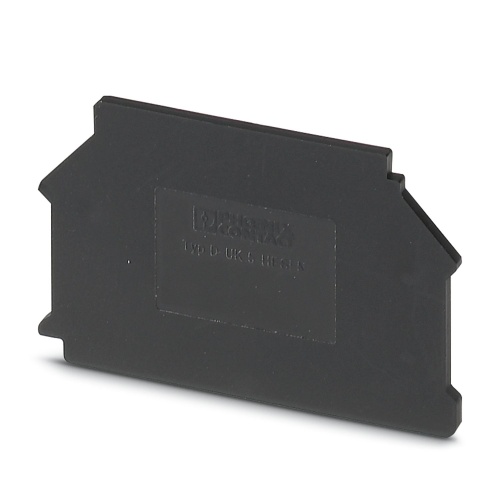

Related Products
Description
Phoenix Contact 3000542 This fuse terminal block is specifically designed for a glass/ceramic fuse with a rating of G/5 x 20 and has a nominal voltage of 500 V and a maximum current capacity of 6.3 A, with one position available for connection via screw. The cross-sectional area ranges from 0.2 to 6 mm² and the terminal block is designed for mounting types NS 35/7.5 or NS 35/15, with a rated cross-section of 1.5 mm². The overall dimensions are further specified by color as black.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
500 Volt
Terminal Block Fused
Fused
Terminal Block Width
8.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Min Wire Size
24
Terminal Block Max Wire Size
10
Terminal Block Component Color
Black
Terminal Block Fuse Type
G - 5 X 20
Component
Terminal Block
Manufacturer
Phoenix Contact
Terminal Block Amperage
6.3 Amp
Sub Component
Fuse Terminal Block
Sub Component
Fuse Modular Terminal Block
Features
Comprehensive product range for cartridge fuse-links, automotive flange fuses, and thermal device circuit breaker plugs
Easy potential distribution thanks to continuous function shafts
Convenient testing of fuses with test points on both sides
Quick identification of faulty fuses and fuse holders regardless of the current direction thanks to an LED status indicator
Easily accessible fuse-links are easy to replace
Same shape as the feed-through, knife, and disconnect terminal blocks
Downloads
Phoenix 3000542 CAD data International.dxfPhoenix 3000542 CAD data International.pdfPhoenix 3000542 CAD data International.stpPhoenix 3000542 Manufacturers declaration English.pdfPhoenix 3000542 Manufacturers declaration International.pdfPhoenix 3000542 Safety note English.pdfPhoenix 3000542 Tender Text English.zip
