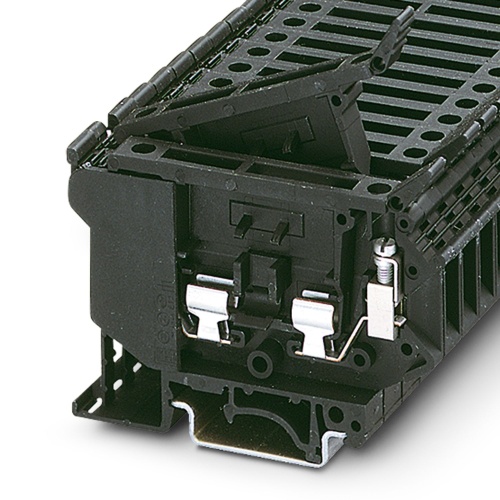

Phoenix Contact 3004100 Fuse modular terminal block UK 5-HESI
Normally In Stock
Code: 40800
UK 5-HESI Phoenix Contact 3004100 Fuse modular Terminal Block - UK 5-HESI - Fuse Terminal Block for cartridge fuse insert, Screw Connection 1 Level 8.2 mm with 2 Connections. Not Grounded, Fused Black. 800 Volt, 6.3 Amp max rating.
Condition: New
Usually Ships Same day or Next Day$12.42
Sale Price
$10.35
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3004100 The fuse terminal block has a glass/ceramic fuse with various types available such as G 5 x 20, 5 x 25, and 5 x 30, accommodating different nominal voltages of up to 800 V, nominal currents of up to 6.3 A, and featuring single-position connections secured by screw connection. The fuse's rated cross-section ranges from 0.2 mm² to 4 mm², with mounting types including NS 35/7.5, NS 35/15, and NS 32, while the overall assembly has a black coloration.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
800 Volt
Terminal Block Fused
Fused
Terminal Block Width
8.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
12
Terminal Block Min Wire Size
24
Terminal Block Component Color
Black
Terminal Block Fuse Type
G - 5 X 20 - 5 X 25 - 5 X 30
Component
Terminal Block
Manufacturer
Phoenix Contact
Terminal Block Amperage
6.3 Amp
Sub Component
Fuse Terminal Block
Sub Component
Fuse Modular Terminal Block
Features

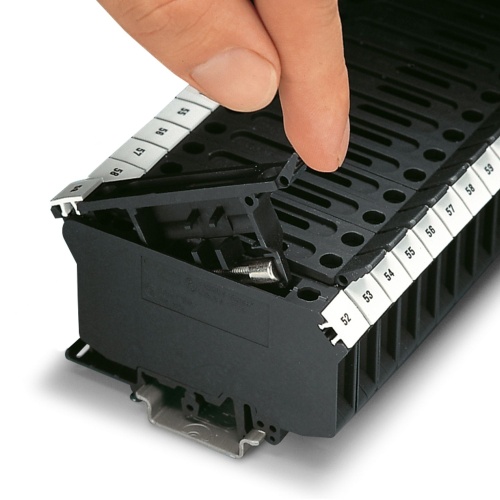

Large-surface marking
Safety lever locked in end position
Downloads
Phoenix 3004100 CAD data International.dxfPhoenix 3004100 CAD data International.pdfPhoenix 3004100 CAD data International.stpPhoenix 3004100 CAD Drawing.zipPhoenix 3004100 Manufacturers declaration English.pdfPhoenix 3004100 Manufacturers declaration International.pdfPhoenix 3004100 Product Information English.pdfPhoenix 3004100 Safety note English.pdfPhoenix 3004100 Spec Sheet.pdfPhoenix 3004100 Tender Text English.zip
