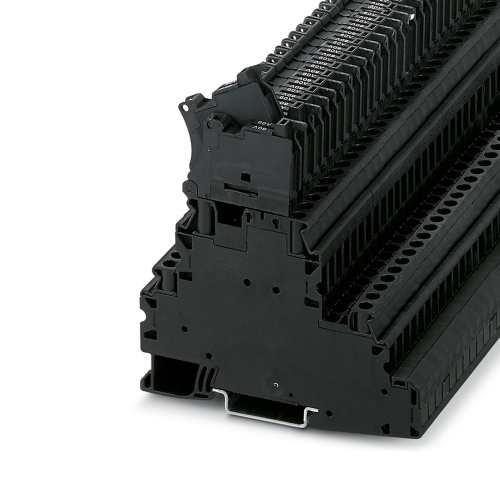

Phoenix Contact 3214367 Fuse modular terminal block UT 4-L/HESILED 60 (5X20)
Normally In Stock
Code: 40798
UT 4-L/HESILED 60 (5X20) Phoenix Contact 3214367 Fuse modular Terminal Block - UT 4-L/HESILED 60 (5X20) - fuse type: Glass Screw Connection 2 Level 6.2 mm with 4 Connections. Not Grounded, Fused Black. 60 Volt, 30 Amp max rating.
Condition: New
Usually Ships Same day or Next Day$13.43
Sale Price
$11.19
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3214367 The fuse terminal block features a glass/ceramic fuse of type G and has specific dimensions, including a nominal voltage of 60V and a continuous current rating of 28A. The rated cross-sectional area is 4mm2 with a range of 0.14-6mm2, and it utilizes screw connections for both the rated and non-rated sections. Additionally, this terminal block is mounted using NS35/7.5 or NS35/15 mounting types, and has a black color designation.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Fused
Fused
Terminal Block Voltage Rating
60 Volt
Terminal Block Width
6.2 mm
Terminal Block Number of Connections
4
Terminal Block Number of Levels
2
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
10
Terminal Block Min Wire Size
26
Terminal Block Component Color
Black
Terminal Block Amperage
30 Amp
Terminal Block Fuse Type
G - 5 X 20
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Fuse Terminal Block
Sub Component
Fuse Modular Terminal Block
Features
Comprehensive product range for cartridge fuse-links, automotive flange fuses, and thermal device circuit breaker plugs
Easy potential distribution thanks to continuous function shafts
Convenient testing of fuses with test points on both sides
Quick identification of faulty fuses and fuse holders regardless of the current direction thanks to an LED status indicator
Easily accessible fuse-links are easy to replace
Same shape as the feed-through, knife, and disconnect terminal blocks
Downloads
Phoenix 3214367 CAD data International.dxfPhoenix 3214367 CAD data International.pdfPhoenix 3214367 CAD data International.stpPhoenix 3214367 Certification English.pdfPhoenix 3214367 Certification International.pdfPhoenix 3214367 Manufacturers declaration English.pdfPhoenix 3214367 Manufacturers declaration International-2.pdfPhoenix 3214367 Manufacturers declaration International.pdfPhoenix 3214367 Safety note English.pdfPhoenix 3214367 Tender Text English.zipPhoenix 3214367 User instructions for the Ex Area International.pdf
