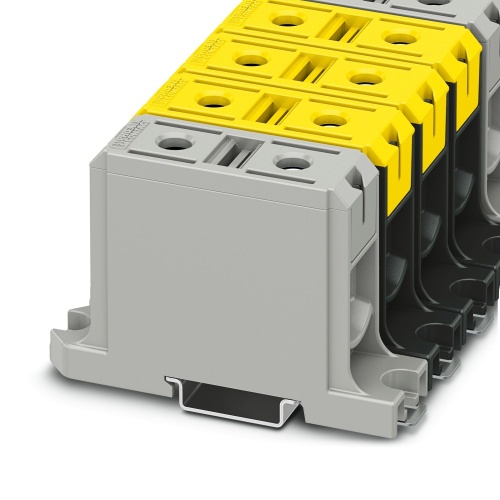

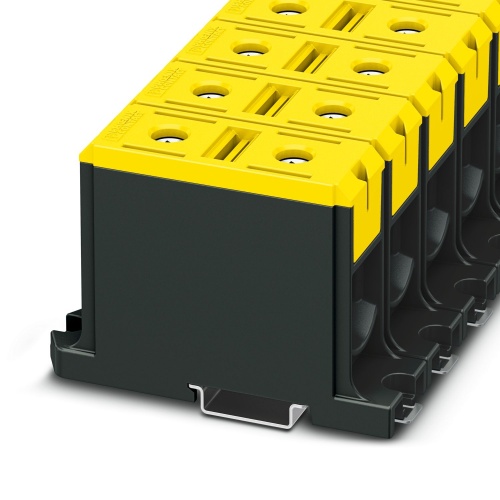

Phoenix Contact 1086504 High-current terminal block UBAL 150 FE
Normally In Stock
Code: 40788
UBAL 150 FE Phoenix Contact 1086504 High-current Terminal Block - UBAL 150 FE Screw Connection 1 Level 30.5 mm with . Not Grounded, Not Fused Yellow. 1000 Volt, 290 Amp max rating.
Condition: New
Usually ships within 7-14 days. Call for ship time.$41.12
Sale Price
$34.27
MUST BUY IN PACKS OF 10
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 1086504 A high-current terminal block features a nominal voltage of 1000 V and a maximum current rating of 290 A, accommodating two connections in one position, secured via screw connection. The rated cross-sectional area is specified as 150 mm2, with the actual cross-section range being 35-150 mm2, corresponding to different mounting types including NS 35/15 and NS 35/7.5, distinguished by a yellow color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
1000 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
30.5 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Component Color
Yellow
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Min Wire Size
2
Terminal Block Max Wire Size
300
Component
Terminal Block
Manufacturer
Phoenix Contact
Terminal Block Amperage
290 Amp
Sub Component
Feed-Through Terminal Block
Sub Component
High-Current Terminal Block
Features
Maintenance-free terminal points that are greased beforehand simplify the connection of aluminum conductors
Tailor-made screw connection for multi-stranded aluminum conductors and copper wires
Extremely robust housing made from fiberglass-reinforced polyamide with V0 approval
The special design of the UBAL enables the simultaneous connection of aluminum and copper conductors in various connections
Downloads
Phoenix 1086504 CAD data International.dxfPhoenix 1086504 CAD data International.pdfPhoenix 1086504 CAD data International.stpPhoenix 1086504 Manufacturers declaration International-2.pdfPhoenix 1086504 Manufacturers declaration International.pdfPhoenix 1086504 Safety note English.pdfPhoenix 1086504 Tender Text English.zip
